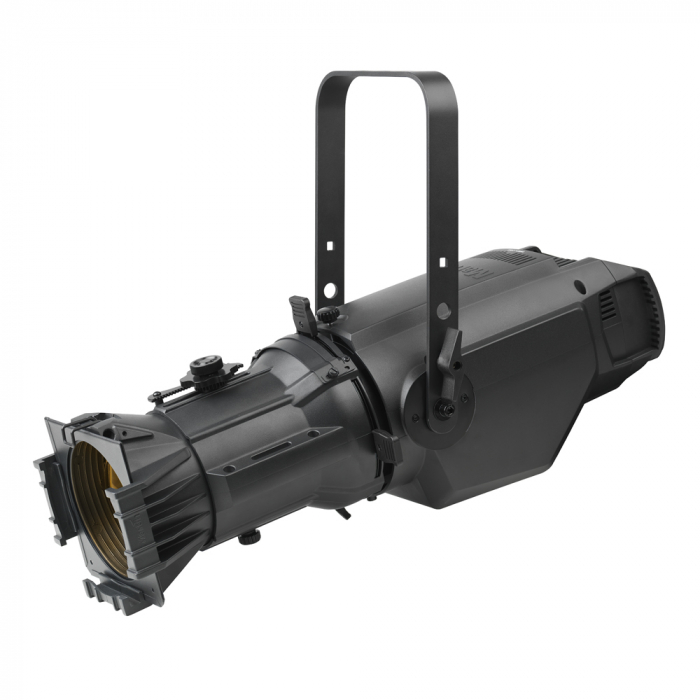

Martin ELP CL (Color) LED ellipsoid fixtures deliver the class-leading luminance, output and vivid color rendering that you’ve come to expect from Martin. Ergonomic Danish engineering offers advances in lighting functionality that include the highly efficient gear-based Fine Focus—an industry first; and Fast Focus which allows focusing of the fixture without data flowing to it. ELP also offers 16-bit dimming with 4 selectable curves and 26 color presets that match industry-standard color filters. ELP fixtures can be configured with one of four Martin lens tubes in 19, 26, 36 and 50-degree beam angles and are compatible with third-party lens tubes along with a wide range of accessories including gel frames and gobos for flexibility in lighting design and inventory management.

Superior output, optics and color rendering, combined with unparalleled ease-of-use and convenience, make Martin ELP CL the leading Color LED ellipsoidal fixture in its class. ELP Zoom Lenses expand the versatility of the line with two industry-standard beam ranges and two housing color variants available in 15-30 degree and 25-50 degree beam ranges, in black or white housing.

Martin recommends using official Martin-branded ELP accessories for the highest possible performance. While we strive to ensure compatibility with third-party accessories, we cannot guarantee optimal performance and recommend that the user makes an evaluation of such an accessory before purchasing.

FEATURES

Impressive light output rating of 6,900 lumens (in High Output mode).
Superior CRI rating of 90 (in High Quality mode).
Revolutionary focus and functionality—industry’s first gear-driven Fine Focus, Fast Focus for data-free focusing, and more.
Compatible with universal accessories—use existing lens tubes, gel frames, gobo holders and rotators
15-30 degree and 25-50 degree beam Zoom lenses available in black and white
Advanced optics engineered in Denmark
RGBAL Luxeon Rebel LED engine delivers vibrant, saturated colors
26 color presets match industry-standard filters
16-bit dimming with 4 selectable dimming curves
Flicker-free operation
5-pin DMX/RDM and Neutrik True1 In/Thru connectivity

Physical:

Length: 648 mm (25.5 in.)
Width: 259 mm (10.2 in.)
Height: 254 mm (10 in.), 427 mm (16.8 in.) with bracket
Weight: 7.7 kg (17 lbs) body only

Dynamic Effects: Color mixing: RGBLA
Color Temperature Range: 2000-10000K
Color selection: 26 color presets
Electronic dimming: 0–100%, Four dimming curve options
Strobe and pulse effects: Variable speed and action, random strobe
Electronic shutter effect: Instant open and blackout

Control And Programming:

Control options: DMX, stand-alone
DMX channels: 1/10/17
16-bit control: Intensity, CTC, RGBLA
Setting and addressing: Control panel with OLED display or via RDM
PWM: 600-2400 Hz
Standalone programming: Control panel with OLED display
DMX compliance: USITT DMX512-A
RDM compliance: ANSI/ESTA E1.20
Transceiver: Opto-isolated RS-485

Optics:

Light source: 91 X RGBAL Luxeon Rebel LEDs (19 Red, 24 Green, 12 Blue, 24 Lime, 12 Amber)
Minimum LED lifetime: 30,000 hours (to >70% luminous output)*
Color temperature: 2000-10000K
Lens tube options: 19°, 26°, 36°, 50°
Zoom Lens Tube Options: 15–30° and 25–50°
Binning: Tight color and flux binning
Calibration: White Point Color Calibration

*Figure obtained under manufacturer's test conditions

Photometric Data:
Light engine luminous output: 20,000 lumens

High Output Mode

Fixture luminous output: 6,900 lumens
CRI (Color Rendering Index): >85
CQS (Color Quality Scale): >90
TM-30 Rf (IES TM-30-15 Fidelity Index): >84
TM-30 Rg (IES TM-30-15 Gamut Index): >111
TLCI (Television Lighting Consistency Index): >85
CCT: 5500 K (+/- 250 K)

High Quality Mode

Fixture luminous output: 5,900 lumens
CRI (Color Rendering Index): >90
CQS (Color Quality Scale): >87
TM-30 Rf (IES TM-30-15 Fidelity Index): >84
TM-30 Rg (IES TM-30-15 Gamut Index): >106
TLCI (Television Lighting Consistency Index): >87
CCT: 6000 K (+/- 250 K)

* All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.

Construction:

Housing: Die-cast aluminum
Color: Black or white variant
Protection rating: IP20

Gobos And Color Frame:

Gobo size : A size, 100 mm OD, 75 mm image*, B size, 86 mm OD, 64.5 mm image*
Color frame size: 159 X 159 mm (6.25 X 6.25 in.)

*Gobo holder not included

Installation:

Mounting: Adjustable bracket
Location: Indoor use only
Orientation: AnyMinimum distance to combustible materials: 0.2 m (0.7 ft.)
Minimum distance to illuminated surfaces: 0.5 m (1.6 ft.)

Connections:

AC power in, thru: Neutrik PowerCON TRUE1
DMX and RDM data in/out: 5-pin locking XLR

Electrical:

AC power: 100-240 V nominal, 50/60 Hz
Idle power (zero intensity): 5 W
Power supply unit: Auto-ranging electronic switch-mode
Half-cycle RMS inrush current at 230 V, 50 Hz: 15.0 A
Fixture link via PowerCON at 100-120 V: Up to 4 fixtures
Fixture link via PowerCON at 200-240 V: Up to 9 fixtures

Power consumption figures are typical, not maximum. Allow for +/- 10% variation.

Typical Power And Current:

110 V, 60 Hz: 2.4 A, 259 W, PF 0.99
208 V, 60 Hz: 1.3 A, 250 W, PF 0.96
230 V, 50 Hz: 1.3 A, 249 W, PF 0.95
240 V, 50 Hz: 1.1 A, 249 W, PF 0.95

Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%

Thermal:

Cooling: Forced air (temperature-regulated, low noise)
Maximum ambient temperature (Ta max.): 40° C (104° F)
Minimum ambient temperature (Ta min.): 0° C (32° F)
Total heat dissipation (calculated, +/- 10%): 1000 BTU/hr. (at full intensity, full white)

Environmental:

RoHS: Compliant
REACH: Compliant
WEEE: Compliant
Proposition 65: Compliant
Efficacy (max output): 28 lm/W
LWR*: 896 lm/kg (406 lm/lb)

LWR = Lumen-to-Weight Ratio

Approvals:

Global CB Certification/IECEE: IEC 60598-2-17 (IEC 60598-1)
EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493
EU EMC: EN 55015; EN 55032; EN 55103-2; EN 61000-3-2,-3; EN 61547
US safety: UL 1573
US EMC: FCC Part 15 Class B
Canadian safety: CSA C22.2 No. 166
Canadian EMC: ICES-003 Class B, ICES-005 Class B
Australia/NZ: RCM

Included Items:

Power input cable (0.75mm2, 18 AWG), bare ends to Neutrik TRUE1
NAC3FX-W (female), 1.5 m (4.9 ft.)
Mounting bracket
User manual

Related Items:

Martin Companion Cable: P/N 91616091
Martin ELP Lens Tube 19°: P/N 9045107782
Martin ELP Lens Tube 19° White : P/N 9045115166
Martin ELP Lens Tube 26°: P/N 9045107783
Martin ELP Lens Tube 26° White : P/N 9045115167
Martin ELP Lens Tube 36°: P/N 9045107784
Martin ELP Lens Tube 36° White : P/N 9045115168
Martin ELP Lens Tube 50°: P/N 9045107785
Martin ELP Lens Tube 50° White : P/N 9045115170
Martin ELP Zoom Lens Tube 15–30°: P/N 9045121618
Martin ELP Zoom Lens Tube 15–30°, White: P/N 9045122108
Martin ELP Zoom Lens Tube 25–50°: P/N 9045121619
Martin ELP Zoom Lens Tube 25–50°, White: P/N 9045122109

Accessories:
Cables, 16 A, for connection to power in chains:

Power input cables

Power input cable, H07RN-F, 2.5 mm², 14 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.): P/N 91611797
Power input cable, H07RN-F, 2.5 mm², 14 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female), 5 m (16.4 ft.): P/N 91611786
Power input cable, SJOOW, 12 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.): P/N 91610173
Power input cable, SJOOW, 12 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female), 5 m (16.4 ft.): P/N 91610174

Power relay cables

Power Relay Cable, H07RN-F, 2.5 mm², TRUE1-TRUE1 0.45 m (1.5 ft.): P/N 91611784
Power Relay Cable, H07RN-F, 2.5 mm², TRUE1-TRUE1 1.2 m (3.9 ft.): P/N 91611785
Power Relay Cable, H07RN-F, 2.5 mm², TRUE1-TRUE1 2.5 m (8.2 ft.): P/N 91611786
Power Relay Cable, SJOOW, 12 AWG, TRUE1-TRUE1, 0.45 m (1.5 ft.): P/N 91610170
Power Relay Cable, SJOOW, 12 AWG, TRUE1-TRUE1, 1.2 m (3.9 ft.): P/N 91610171
Power Relay Cable, SJOOW, 12 AWG, TRUE1-TRUE1, 2.5 m (8.2 ft.): P/N 91610172

Connectors:

Power connector, cable mount, Neutrik TRUE1 NAC3FX-W (female): P/N 91611789
Power connector, cable mount, Neutrik TRUE1 NAC3MX-W (male): P/N 91611788

Installation hardware:

G-clamp (suspension with fixture hanging vertically downwards only): P/N 91602003
Quick trigger clamp (suspension with fixture hanging vertically downwards only): P/N 91602007
Half-coupler clamp: P/N 91602005
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007
