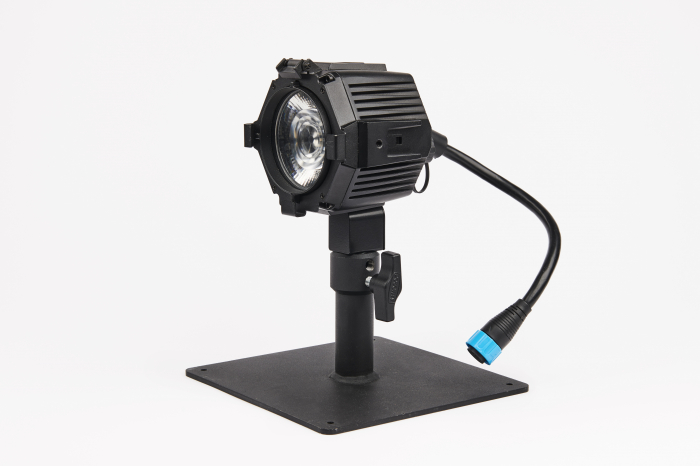

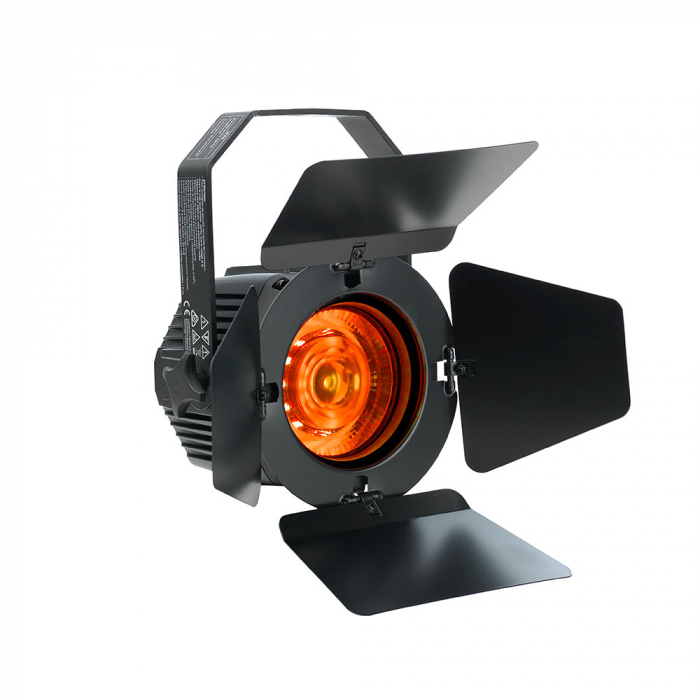

VDO Atomic Dot WRM - Proiector LED cu lumină albă caldă - Martin

Physical:

• Width excluding hanging bracket: 130 mm (5.1 in.)
• Width including hanging bracket: 175 mm (6.9 in.)
• Height excluding hanging bracket: 134 mm (5.3 in.)
• Height including hanging bracket: 242 mm (9.5 in.)

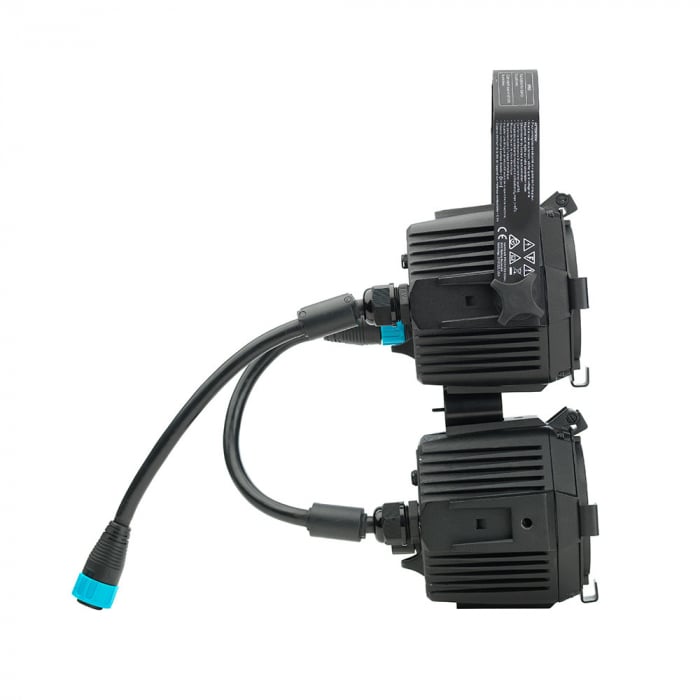

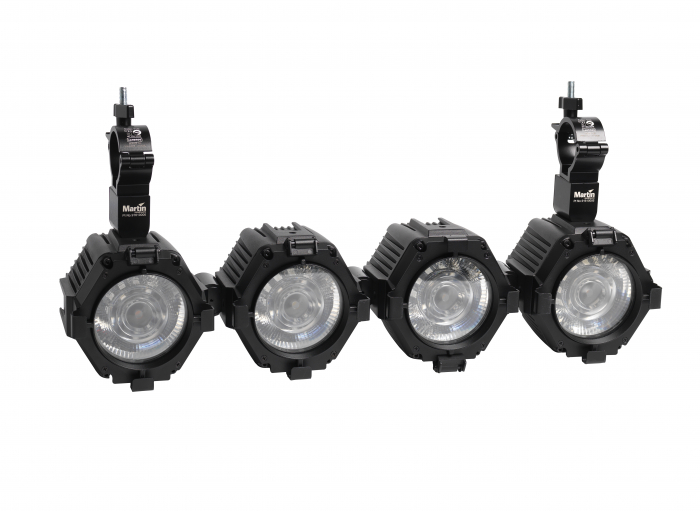

• Horizontal fixture spacing: 150 mm (5.9 in.) (center-to-center using interlock couplers)

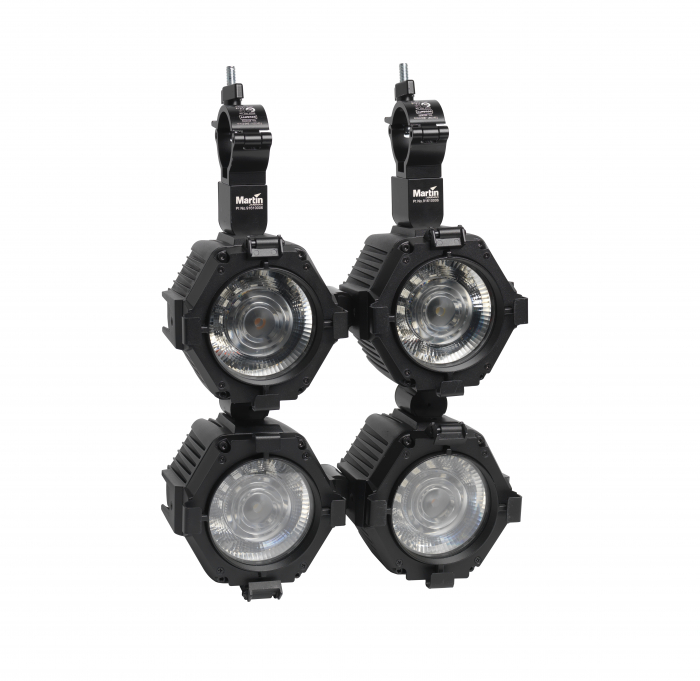

• Vertical fixture spacing: 150 mm (5.9 in.) (center-to-center using interlock couplers)
• Depth: 146 mm (5.7 in.)
• Weight including hanging bracket: 2.2 kg (4.85 lbs.)
• Weight excluding hanging bracket: 2.0 kg (4.41 lbs.)

Dynamic Effects:

• Beam Dimmer/Shutter: 0 – 100% continuous dimming, variable flash rate and duration, and atomic effects
• Beam Dimming options: Choice of four dimming curves
• Beam P3 Mix: Videomapping of fixture with variable crossfade between DMX control and video control

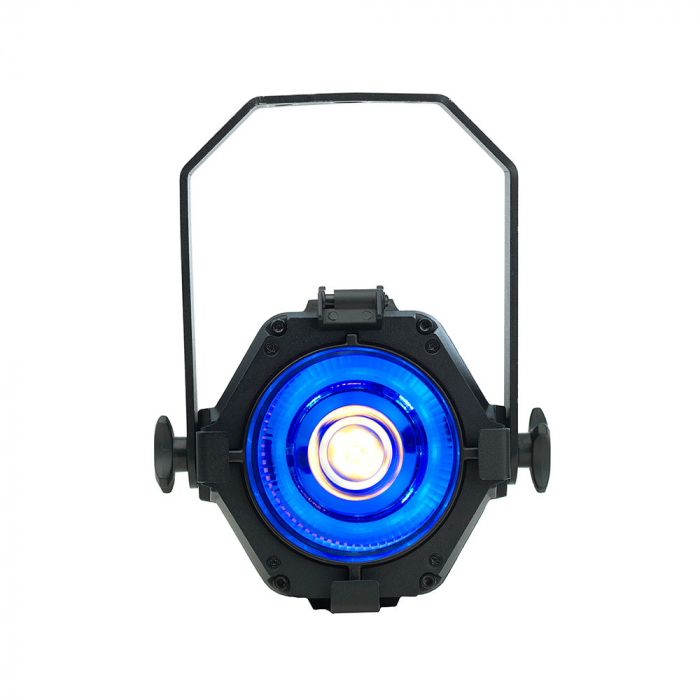

• Aura Dimmer/Shutter: 0 – 100% continuous dimming, regular and random strobe effects
• Aura Dimming options: Choice of four dimming curves

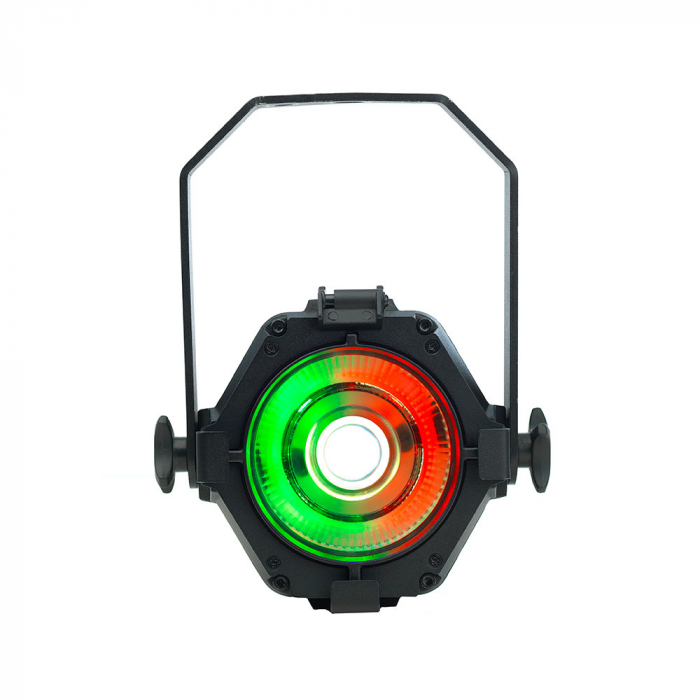

• Aura Color mixing: RGB, independently variable 0 - 100%
• Aura Color temperature control: Variable 2000 - 11,000 K
• Aura Virtual Color wheel: 36 color presets, continuous rotation & random color
• Aura PixelMapping: individual RGB control of each Aura pixel
• Aura P3 Mix: Videomapping of fixture with variable crossfade between DMX control and video control
• Built-in FX: Various pre-programmed FX on Beam, Aura and combination of both

Control And Programming:

• Control Protocols: DMX, RDM, Art-Net, RDM over Art-Net, sACN and P3
• Protocol detection: AutomaticDMX channels: 1, 3, 4, 19, 64
• Setting and addressing: RDM, RDM over Art-Net or P3
• DMX Modes: 1-channel, 3-channel, 4-channel, Basic, Extended
• Fixture Identification: User-settable ID number
• DMX compliance: USITT DMX512-A
• RDM compliance: ANSI/ESTA E1.20Art-Net Compliance: Art-Net 1, 2, 3 and 4; including RDM over Art-NetsACN Compliance: ANSI E1.31 - 2016
• Martin P3 Compliance: P3 System Controller Software 5.1.0 or newerDMX/RDM Transceiver: RS-485
• Ethernet Transceiver: 10/100Mbit
• Firmware update: via DMX using Martin Companion or via Ethernet using P3 System Controller

Control/User Interface:

• Device status: Multi-color status LED
• Device test and reset: Pushbutton to call up local test patterns and reset device

Optics And Photometric Data:

Lens Diameter: 95 mm
Front Accessory Holder: PAR30 size

Beam/Strobe LED

LED Type: Warm White
Max. total lumen output: 2850 lumens (boost/strobe mode)
Max. total lumen output: 1400 lumens (continuous mode)
Beam Angle: 11 Degrees (half peak)
Field Angle: 22 Degrees (one-tenth peak)
Binning: Tight color and flux binning
Color Temperature: 2700 K
CRI (Color Rendering Index): >84
Resolution: 16-bit
Minimum LED lifetime: 50,000 hours (to >70% luminous output)

Aura Backlight LEDs

• LED Type: RGB
• LED Quantity: 16
• Binning: Tight color and flux binning
• Color Temperature: Variable (2000-11,000 K)
• Resolution: 16-bit per color per pixel
• Minimum LED lifetime: 50,000 hours (to >70% luminous output)

* All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.

P3 Video Processing:

• Color Resolution: 16 bit per color (48 bit per pixel) (Aura)
• Color Temperature Control: 2000-11,000 K (Aura)
• Synchronization: System-wideFrame Rate: Up to 75 frames/sec
• Brightness Control: 0-100% (maintaining full color depth)
• Color Gamut Control: full spectrum control (Aura)
• Gamma Correction and Control: fully controllable (Aura)

Construction:

• Housing: Aluminum
• Color: Black
• Protection rating: IP65

Installation:

• Mounting options: hanging from bracket, hanging from clamp attached directly to fixture or hanging from other fixture using interlock mechanism
• Location: indoor or temporary outdoor use
• Clamp attachment to hanging bracket: M12
• Clamp attachment directly to fixture: M8
• Maximum vertical column height: 16 fixtures
• Orientation: Any
• Minimum distance to combustible materials: 0.1 m
• Minimum distance to illuminated surfaces: 0.2 m

Connections:

• AC Power, DMX and Network input: cable tail with PDE hybrid connector (IP65)
• AC Power, DMX and Network thru: chassis-mount PDE hybrid connector (IP65)

All connections hot plugging compatible

Electrical:

• AC power: 100-240 V AC nominal, 50/60 Hz
• Power supply unit: Auto-ranging electronic switch mode
• Typical half-cycle RMS inrush current at 230 V, 50 Hz: 1.1 A
• Typical earth-leakage current: 0.25 mA
• Power Factor: 0.99 @ 100 V , 0.98 @ 120 V , 0.95 @ 208 V , 0.96 @ 230 V , 0.94 @ 240 V
• Max current draw: 0.6 A @ 100 V / 120 V , 0.3 A @ 208 V / 230 V / 240 V
• Typical current draw: 0.5 A @ 100 V , 0.4 A @ 120 V , 0.2 A @ 208 V , 0.2 A @ 230 V , 0.2 A @ 240 V *

Power Consumption

• Maximum: 55 W
• Typical: 50 W *
• Idle: 4 W *

* Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
Typical: full output white.
Idle: no output.

Thermal:

• Cooling: Convection
• Maximum ambient temperature (Ta max.): 40° C
• Minimum ambient temperature (Ta min.): 0° C
• Typical heat dissipation (calculated, +/- 10%): 171 BTU/hr

Environmental:

• RoHS: Compliant
• REACH: Compliant
• WEEE: Compliant
• Proposition 65: Compliant
• Efficacy (max output): 63.3 lm/W
• LWR*: 1,295 lm/kg (588 lm/lb)

LWR = Lumen-to-Weight Ratio

Approvals:

• EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493
• EU EMC: EN 55015, EN 55032, EN 55103-2, EN 61000-3-2, EN 61000-3-3, EN 61547
• US safety: UL 1573US EMC: 47 CRF Chapter 15 Class B
• Canadian safety: CSA 22.2 No. 166
• Canadian EMC: ICES-003 Class B, ICES-005 Class B
• Australia/NZ: RCM
• United Kingdom: UKCA

Related Items:

• VDO Atomic Dot CLD in cardboard: P/N 90357701
• Martin P3-050™ System Controller: P/N 90721090
• Martin P3-150™ System Controller: P/N 90721015
• Martin P3-300™ System Controller: P/N 90721060
• Martin P3-PC™ System Controller: Free download from martin.com
• Martin Companion Cable (for firmware update over DMX): P/N 91616091
• Martin Companion Software (for firmware update over DMX): Free download from www.martin.com

Accessories:

Junction Boxes

• Passive Junction Box Power-DMX-Ethernet to PDE: P/N 91610001
• Active Junction Box Power-DMX-Ethernet to PDE: P/N MAR-91700002

Adapters Cables

• BreakIn Cable Power-DMX-Ethernet to PDE: P/N MAR-91700000
• BreakOut Cable PDE to Power-DMX-Ethernet: P/N MAR-91700001
• BreakInOut Cable Power-DMX to PDE: P/N MAR-91700003

Optical Accessories

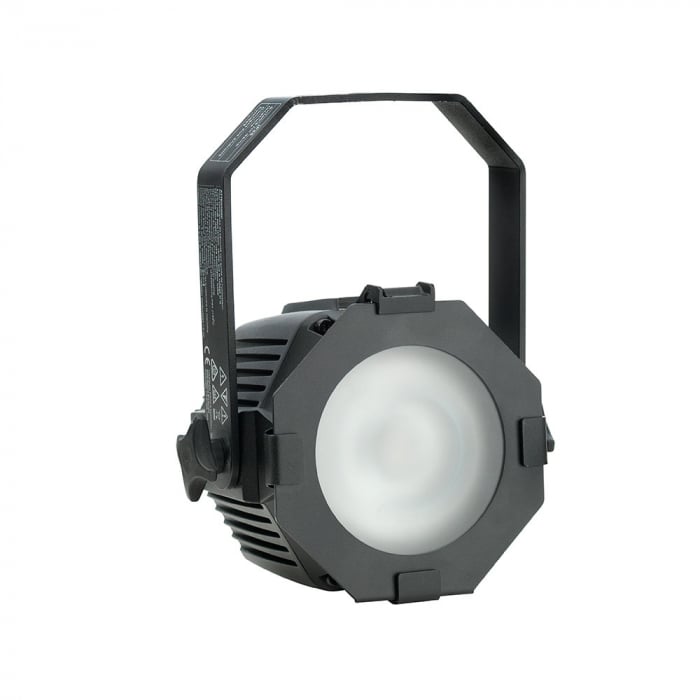

• VDO Atomic Dot Diffuser 60 Degrees: P/N 91610002
• VDO Atomic Dot Diffuser 30 Degrees: P/N 91610005

Mechanical Accessories

• Super Lightweight Half Coupler Rigging Clamp, black: P/N 91602018
• G-clamp (vertical hanging installation only): P/N 91602003
• Half-coupler clamp: P/N 91602005
• Quick trigger clamp (vertical hanging installation only): P/N 91602007
• Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
• Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007
• Set of 10 VDO Atomic Couplers: P/N 91610003
• VDO Atomic Half Coupler: P/N 91610004
• VDO Atomic Interlock Adapter: P/N 91610006
• VDO Atomic Pivot Coupler: P/N 91610007
• VDO Atomic Dot Double Width Bracket: P/N 91616117
• VDO Atomic Spigot Adapter 28mm: P/N MAR-91616118

Pre-Assembled Hybrid PDE Cables

• Power+Data Cable Rental PDE-PDE 1m: P/N 91616001
• Power+Data Cable Rental PDE-PDE 2,5m: P/N 91616002
• Power+Data Cable Rental PDE-PDE 5m: P/N 91616003
• Power+Data Cable Rental PDE-PDE 10m: P/N 91616004
• Power+Data Cable Rental PDE-PDE 25m: P/N 91616005

Bulk Hybrid PDE Cable and Connectors

• Power+Data Connector PDE Male: P/N 91611701
• Power+Data Connector PDE Female: P/N 91611702
• Power+Data Cable Power-DMX-Ethernet Rental 100m: P/N 91616006

DemoKit
VDO Atomic Dot Demo Kit: P/N 91311001

Flightcase

• Flightcase for 15 x VDO Atomic Dot: P/N 91515053
• Flightcase Extender for 15 x VDO Atomic Dot: P/N 91515054

Ordering Information:
VDO Atomic Dot WRM in cardboard : P/N 90357702
