Martin VDO Atomic Dot CLD - Proiector LED cu lumină albă rece - Martin

VDO Atomic Dot CLD , Proiector LED cu lumină albă rece de efect Strobocop.
Cod Produs: VDO Atomic Dot CLD Ai nevoie de ajutor? 0790 99 99 22
  • Descriere
  • Caracteristici
  • Video (2)
  • Review-uri (0)

The Martin VDO Atomic Dot CLD hybrid lighting and video fixture, also available in a WRM color temperature variant, combines a compact strobe, small blinder, video-pixel and small spotlight.

By combining a video-controlled Aura backlight and a bright strobe/blinder dot in one fixture, lighting designers are empowered with greater creative potential to make a bigger impact with audiences than ever before. The fixtures’ compact design also gives designers the ability to place VDO Atomic Dots just about anywhere and deploy them in larger quantities. Integrated support for P3, DMX, Art-Net and sACN eliminates the need for additional interface boxes and onboard P3 eases pixel mapping and using the product as a video controlled strobe or blinder.

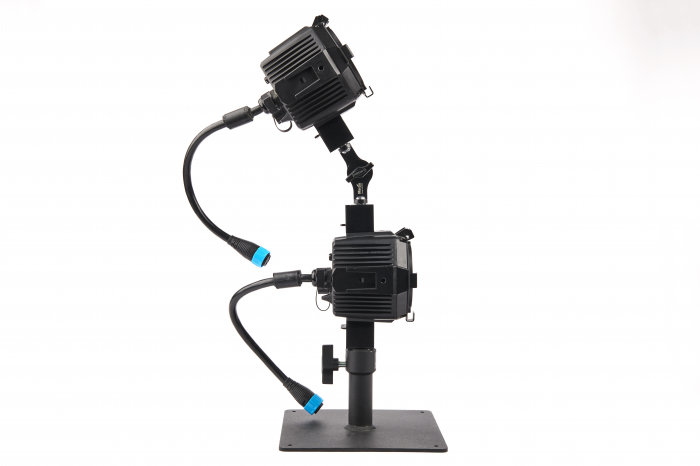

The integrated interlocking mechanics allow multiple VDO Atomic Dots to be combined in battens, arrays or creative shapes. While the hybrid cable carrying DMX, Art-Net, sACN and P3 makes connections easy and fast.

VDO Atomic Dots are ideal for rental customers and lighting designers working in concert/touring and TV show sets as well as supporting corporate and nightclub clients.





FEATURES

  • Cold white (5700K) beam/strobe/blind/eye-candy fixture
  • 3350 lumen boost/strobe
  • 1600 lumen continuous
  • Beam angle of 11 degrees
  • Field angle of 22 degrees

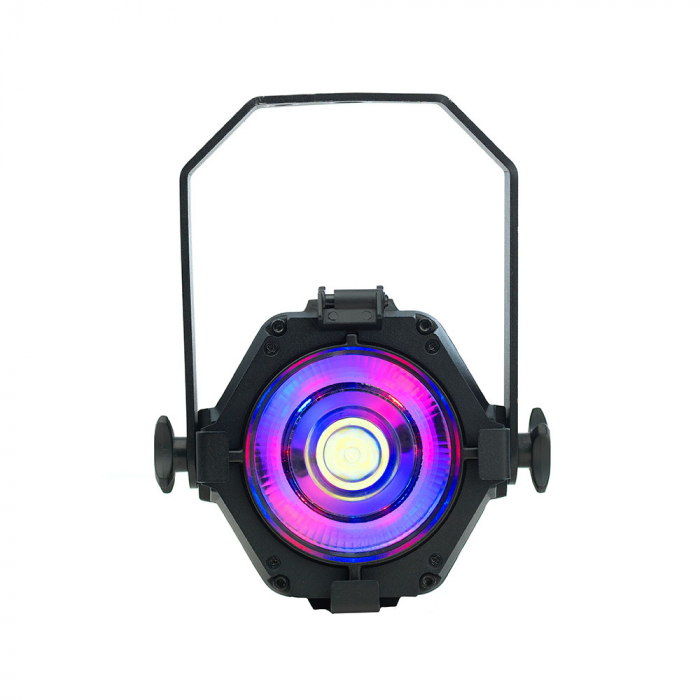

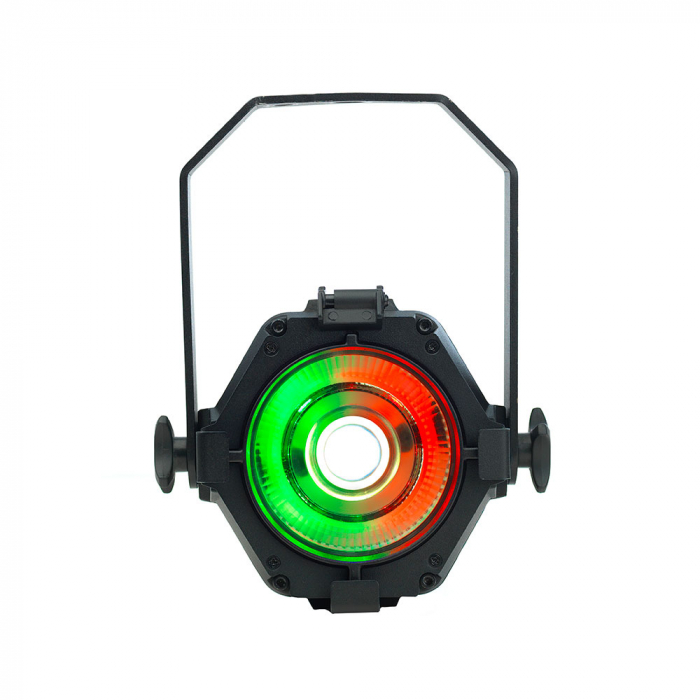

  • Pixel-controllable RGB Aura backlight
  • Compact form-factor
  • Built-in power supply (100-240V)

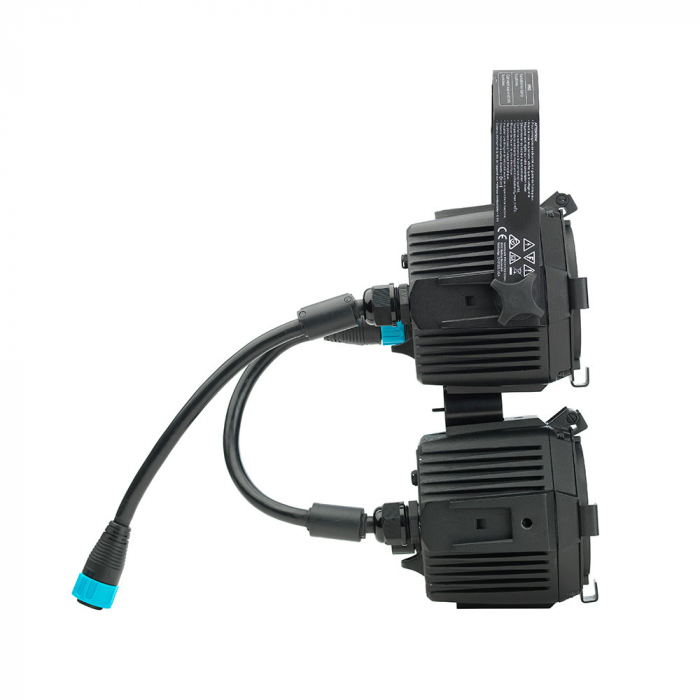

  • Power and Data IN & THRU via hybrid cable (PDE System)
  • P3, DMX, Art-Net & sACN compatible
  • Built-in pixel-FX on backlight and beam

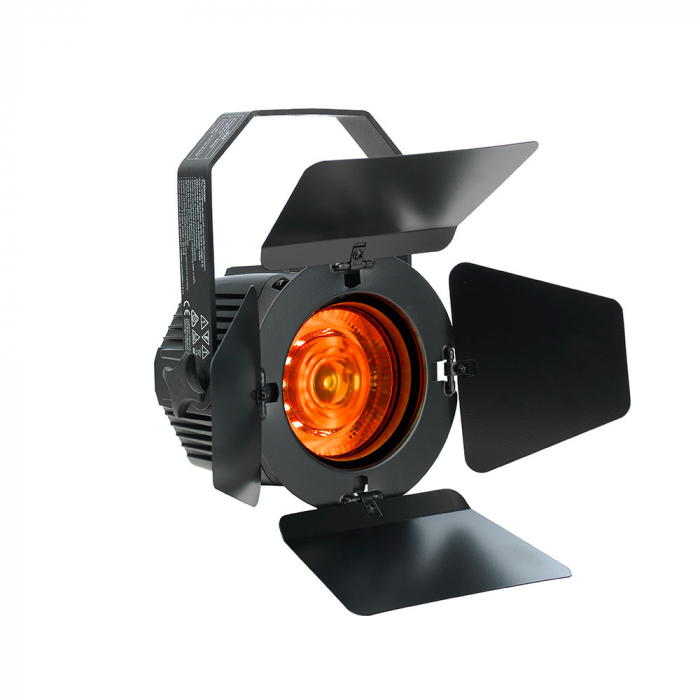

  • Front-accessory holder for barndoors and/or diffuser/lens
  • Detachable yoke-assembly

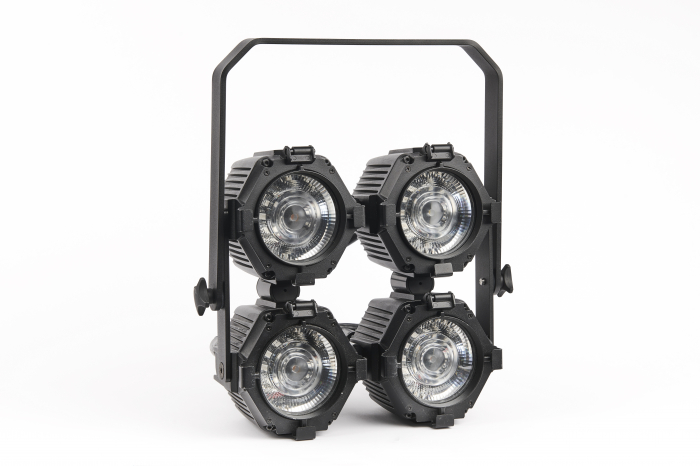

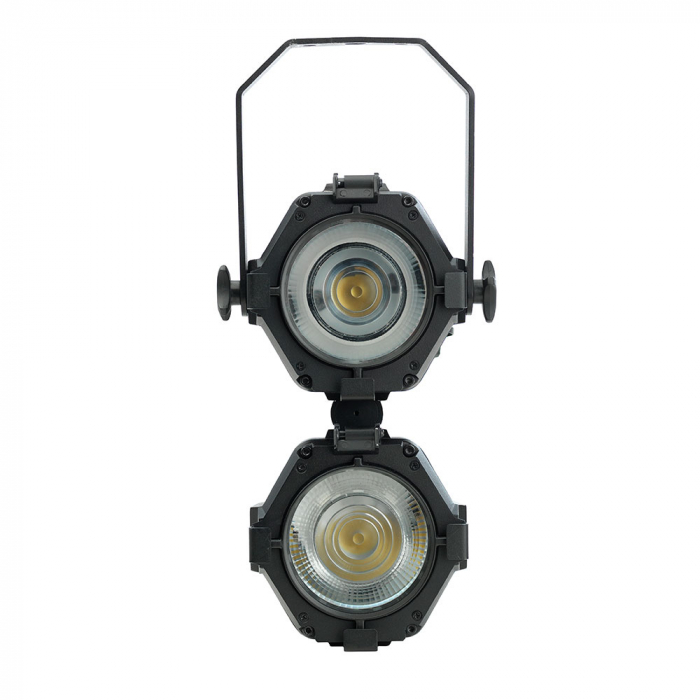

  • Smart interlocking mechanics to build battens, arrays and creative shapes
  • Compatible with Martin VDO Atomic Bold interlocking mechanics for mixed arrays
  • Passive cooling
  • IP65 rated

Physical:

  • Width excluding hanging bracket: 130 mm (5.1 in.)
  • Width including hanging bracket: 175 mm (6.9 in.)
  • Height excluding hanging bracket: 134 mm (5.3 in.)
  • Height including hanging bracket: 242 mm (9.5 in.)
  • Horizontal fixture spacing: 150 mm (5.9 in.) (center-to-center using interlock couplers)
  • Vertical fixture spacing: 150 mm (5.9 in.) (center-to-center using interlock couplers)
  • Depth: 146 mm (5.7 in.)
  • Weight including hanging bracket: 2.2 kg (4.85 lbs.)
  • Weight excluding hanging bracket: 2.0 kg (4.41 lbs.)

Dynamic Effects:

  • Beam Dimmer/Shutter: 0 – 100% continuous dimming, variable flash rate and duration, and atomic effects
  • Beam Dimming options: Choice of four dimming curves
  • Beam P3 Mix: Videomapping of fixture with variable crossfade between DMX control and video control
  • Aura Dimmer/Shutter: 0 – 100% continuous dimming, regular and random strobe effects
  • Aura Dimming options: Choice of four dimming curves
  • Aura Color mixing: RGB, independently variable 0 - 100%
  • Aura Color temperature control: Variable 2000 - 11,000 K
  • Aura Virtual Color wheel: 36 color presets, continuous rotation & random color
  • Aura PixelMapping: individual RGB control of each Aura pixel
  • Aura P3 Mix: Videomapping of fixture with variable crossfade between DMX control and video control
  • Built-in FX: Various pre-programmed FX on Beam, Aura and combination of both

Control And Programming:

  • Control Protocols: DMX, RDM, Art-Net, RDM over Art-Net, sACN and P3
  • Protocol detection: AutomaticDMX channels: 1, 3, 4, 19, 64
  • Setting and addressing: RDM, RDM over Art-Net or P3
  • DMX Modes: 1-channel, 3-channel, 4-channel, Basic, Extended
  • Fixture Identification: User-settable ID number
  • DMX compliance: USITT DMX512-A
  • RDM compliance: ANSI/ESTA E1.20Art-Net Compliance: Art-Net 1, 2, 3 and 4; including RDM over Art-NetsACN Compliance: ANSI E1.31 - 2016
  • Martin P3 Compliance: P3 System Controller Software 5.1.0 or newerDMX/RDM Transceiver: RS-485
  • Ethernet Transceiver: 10/100Mbit
  • Firmware update: via DMX using Martin Companion or via Ethernet using P3 System Controller

Control/User Interface:

  • Device status: Multi-color status LED
  • Device test and reset: Pushbutton to call up local test patterns and reset device

Optics And Photometric Data:

Lens Diameter: 95 mm
Front Accessory Holder: PAR30 size

Beam/Strobe LED

  • LED Type: Cold White
  • Max. total lumen output: 3350 lumens (boost/strobe mode)
  • Max. total lumen output: 1600 lumens (continuous mode)
  • Beam Angle: 11 Degrees (half peak)
  • Field Angle: 22 Degrees (one-tenth peak)
  • Binning: Tight color and flux binning
  • Color Temperature: 5700 K
  • CRI (Color Rendering Index): >80
  • Resolution: 16-bit
  • Minimum LED lifetime: 50,000 hours (to >70% luminous output)


Aura Backlight LEDs

  • LED Type: RGB
  • LED Quantity: 16
  • Binning: Tight color and flux binning
  • Color Temperature: Variable (2000-11,000 K)
  • Resolution: 16-bit per color per pixel
  • Minimum LED lifetime: 50,000 hours (to >70% luminous output)

* All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.

P3 Video Processing:

  • Color Resolution: 16 bit per color (48 bit per pixel) (Aura)
  • Color Temperature Control: 2000-11,000 K (Aura)
  • Synchronization: System-wideFrame Rate: Up to 75 frames/sec
  • Brightness Control: 0-100% (maintaining full color depth)
  • Color Gamut Control: full spectrum control (Aura)
  • Gamma Correction and Control: fully controllable (Aura)

Construction:

  • Housing: Aluminum
  • Color: Black
  • Protection rating: IP65

Installation:

  • Mounting options: hanging from bracket, hanging from clamp attached directly to fixture or hanging from other fixture using interlock mechanismLocation: indoor or temporary outdoor use
  • Clamp attachment to hanging bracket: M12Clamp attachment directly to fixture: M8

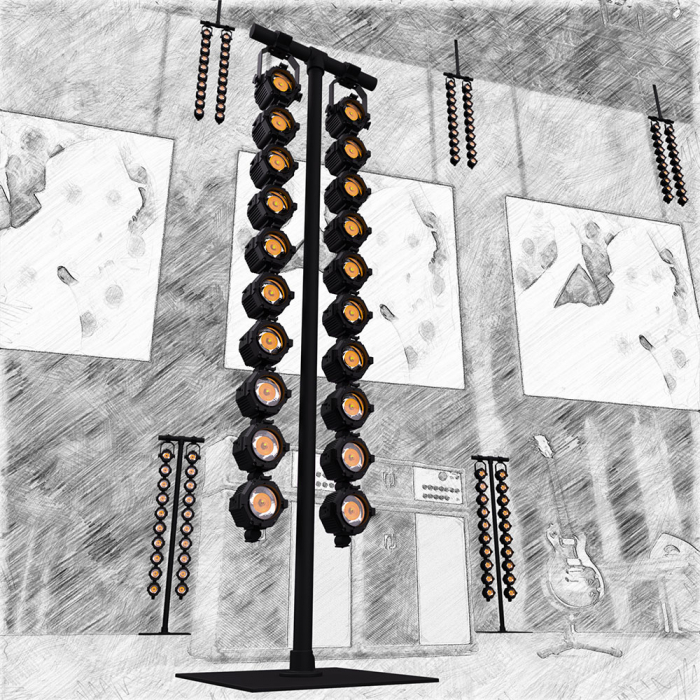

  • Maximum vertical column height: 16 fixtures
  • Orientation: Any
  • Minimum distance to combustible materials: 0.1 m
  • Minimum distance to illuminated surfaces: 0.2 m

Connections:

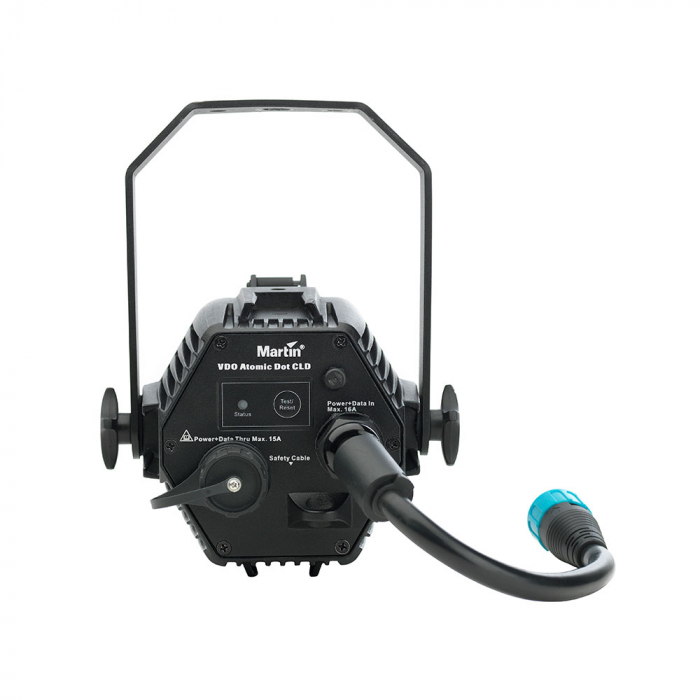

  • AC Power, DMX and Network input: cable tail with PDE hybrid connector (IP65)
  • AC Power, DMX and Network thru: chassis-mount PDE hybrid connector (IP65)
All connections hot plugging compatible

Electrical:

  • AC power: 100-240 V AC nominal, 50/60 Hz
  • Power supply unit: Auto-ranging electronic switch mode
  • Typical half-cycle RMS inrush current at 230 V, 50 Hz: 1.1 A
  • Typical earth-leakage current: 0.25 mA
  • Power Factor: 0.99 @ 100 V , 0.98 @ 120 V , 0.95 @ 208 V , 0.96 @ 230 V , 0.94 @ 240 V
  • Max current draw: 0.6 A @ 100 V / 120 V , 0.3 A @ 208 V / 230 V / 240 V
  • Typical current draw: 0.5 A @ 100 V , 0.4 A @ 120 V , 0.2 A @ 208 V , 0.2 A @ 230 V , 0.2 A @ 240 V *
  • Power Consumption
  • Maximum: 55 W
  • Typical: 50 W *
  • Idle: 4 W *
* Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
Typical: full output white.
Idle: no output.

Thermal:

  • Cooling: Convection
  • Maximum ambient temperature (Ta max.): 40° C
  • Minimum ambient temperature (Ta min.): 0° C
  • Typical heat dissipation (calculated, +/- 10%): 171 BTU/hr

Environmental:

  • RoHS: Compliant
  • REACH: Compliant
  • WEEE: Compliant
  • Proposition 65: Compliant
  • Efficacy (max output): 74.4 lm/W
  • LWR*: 1,523 lm/kg (691 lm/lb)

LWR = Lumen-to-Weight Ratio

Approvals:

  • EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493EU EMC: EN 55015, EN 55032, EN 55103-2, EN 61000-3-2, EN 61000-3-3, EN 61547
  • US safety: UL 1573US EMC: 47 CRF Chapter 15 Class B
  • Canadian safety: CSA 22.2 No. 166
  • Canadian EMC: ICES-003 Class B, ICES-005 Class B
  • Australia/NZ: RCM
  • United Kingdom: UKCA

  • VDO Atomic Dot WRM in cardboard: P/N 90357702
  • Martin P3-050™ System Controller: P/N 90721090
  • Martin P3-150™ System Controller: P/N 90721015
  • Martin P3-300™ System Controller: P/N 90721060
  • Martin P3-PC™ System Controller: Free download from martin.com
  • Martin Companion Cable (for firmware update over DMX): P/N 91616091
  • Martin Companion Software (for firmware update over DMX): Free download from www.martin.com

Accessories:


Junction Boxes

  • Passive Junction Box Power-DMX-Ethernet to PDE: P/N 91610001
  • Active Junction Box Power-DMX-Ethernet to PDE: P/N MAR-91700002


Adapters Cables

  • BreakIn Cable Power-DMX-Ethernet to PDE: P/N MAR-91700000
  • BreakOut Cable PDE to Power-DMX-Ethernet: P/N MAR-91700001
  • BreakInOut Cable Power-DMX to PDE: P/N MAR-91700003


Optical Accessories

  • VDO Atomic Dot Diffuser 60 Degrees: P/N 91610002
  • VDO Atomic Dot Diffuser 30 Degrees: P/N 91610005


Mechanical Accessories

  • Super Lightweight Half Coupler Rigging Clamp, black: P/N 91602018
  • G-clamp (vertical hanging installation only): P/N 91602003
  • Half-coupler clamp: P/N 91602005
  • Quick trigger clamp (vertical hanging installation only): P/N 91602007
  • Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
  • Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007
  • Set of 10 VDO Atomic Couplers: P/N 91610003
  • VDO Atomic Half Coupler: P/N 91610004
  • VDO Atomic Interlock Adapter: P/N 91610006
  • VDO Atomic Pivot Coupler: P/N 91610007
  • VDO Atomic Dot Double Width Bracket: P/N 91616117
  • VDO Atomic Spigot Adapter 28mm: P/N MAR-91616118


Pre-Assembled Hybrid PDE Cables

  • Power+Data Cable Rental PDE-PDE 1m: P/N 91616001
  • Power+Data Cable Rental PDE-PDE 2,5m: P/N 91616002
  • Power+Data Cable Rental PDE-PDE 5m: P/N 91616003
  • Power+Data Cable Rental PDE-PDE 10m: P/N 91616004
  • Power+Data Cable Rental PDE-PDE 25m: P/N 91616005


Bulk Hybrid PDE Cable and Connectors

  • Power+Data Connector PDE Male: P/N 91611701
  • Power+Data Connector PDE Female: P/N 91611702
  • Power+Data Cable Power-DMX-Ethernet Rental 100m: P/N 91616006


DemoKit
VDO Atomic Dot Demo Kit: P/N 91311001


Flightcase

  • Flightcase for 15 x VDO Atomic Dot: P/N 91515053
  • Flightcase Extender for 15 x VDO Atomic Dot: P/N 91515054

Ordering Information: VDO Atomic Dot CLD in cardboard : P/N 90357701
