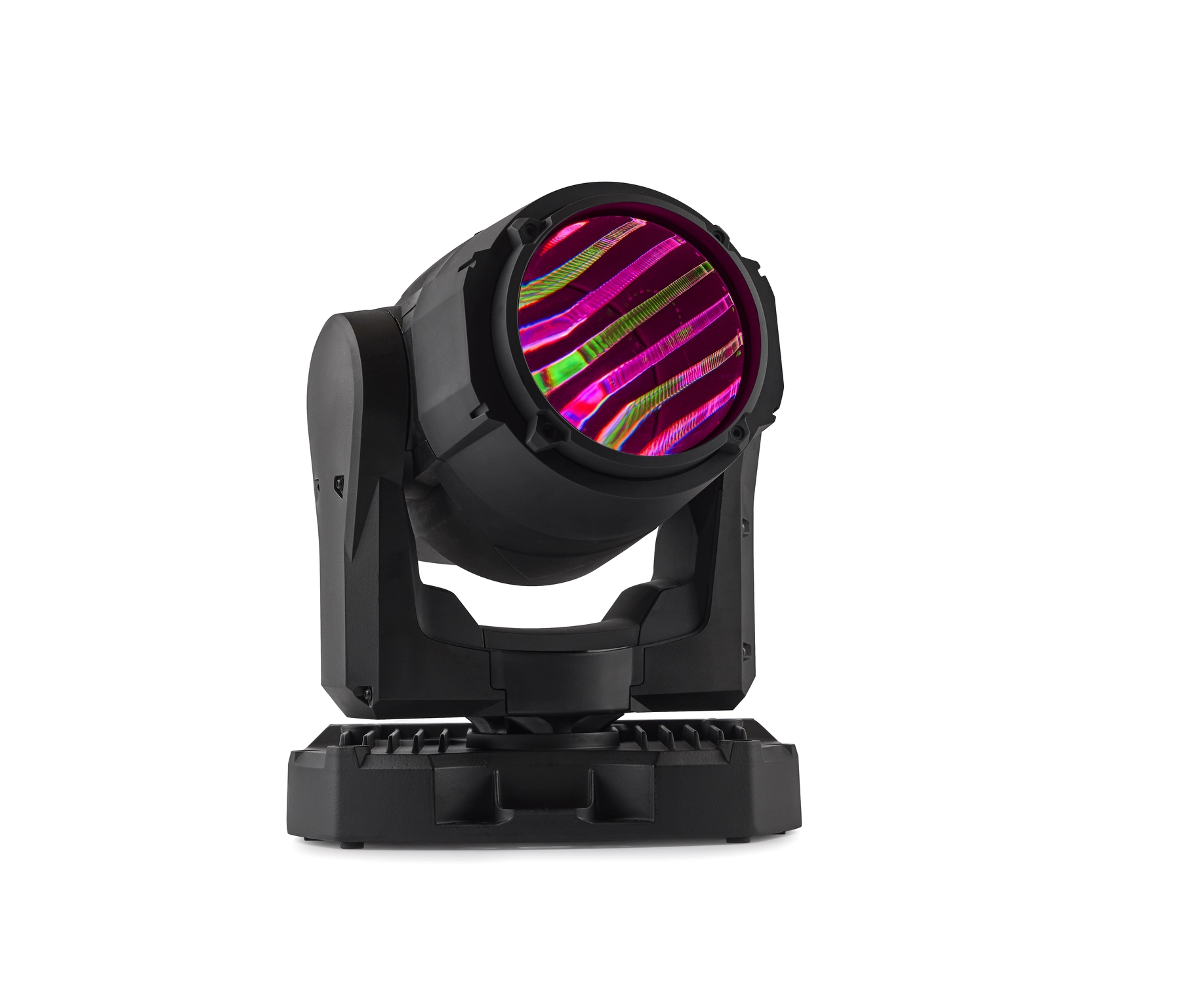

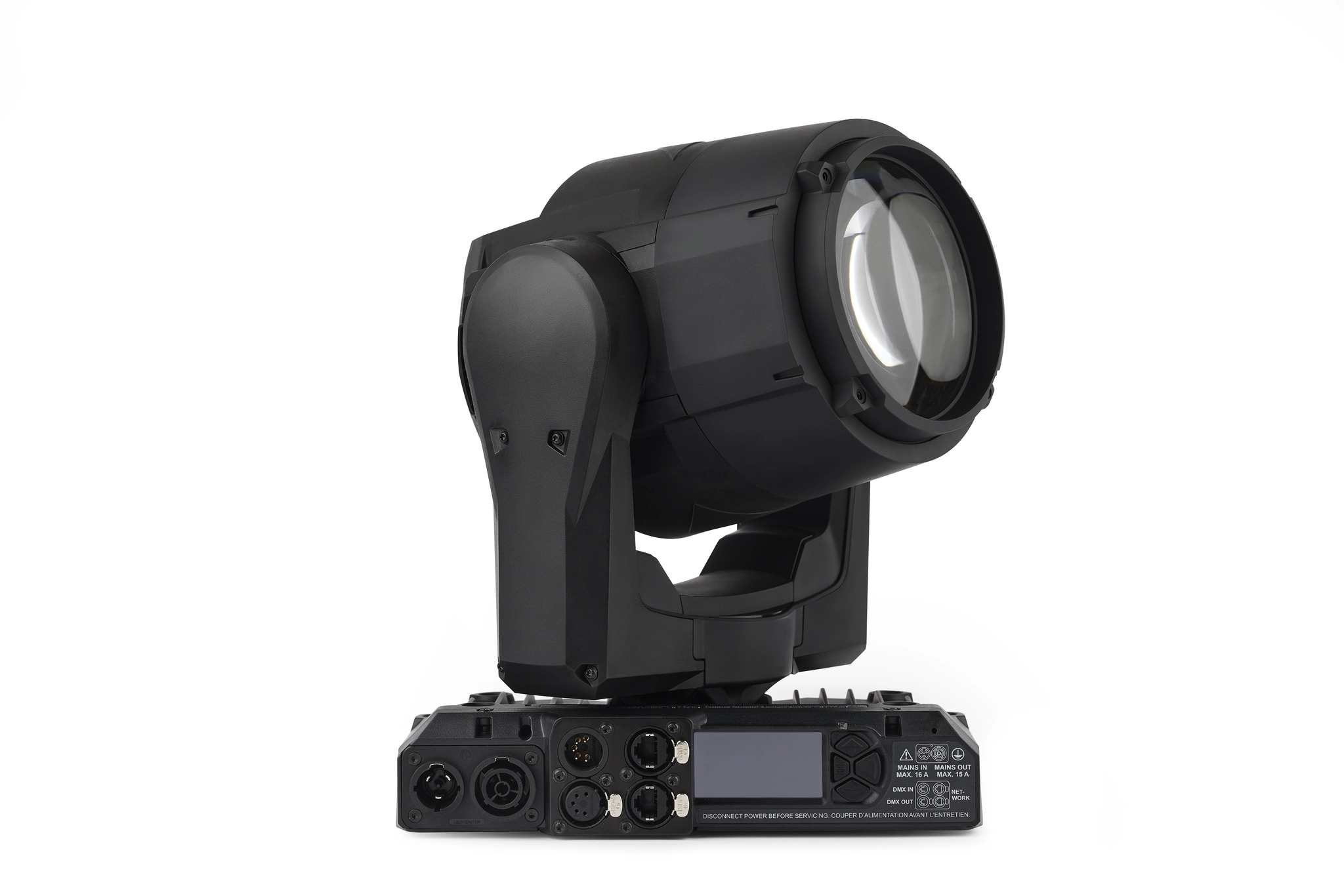

MAC One Beam - Proiector ultra compact cu cap rotativ Creative Beam - Martin - Martin

Physical:

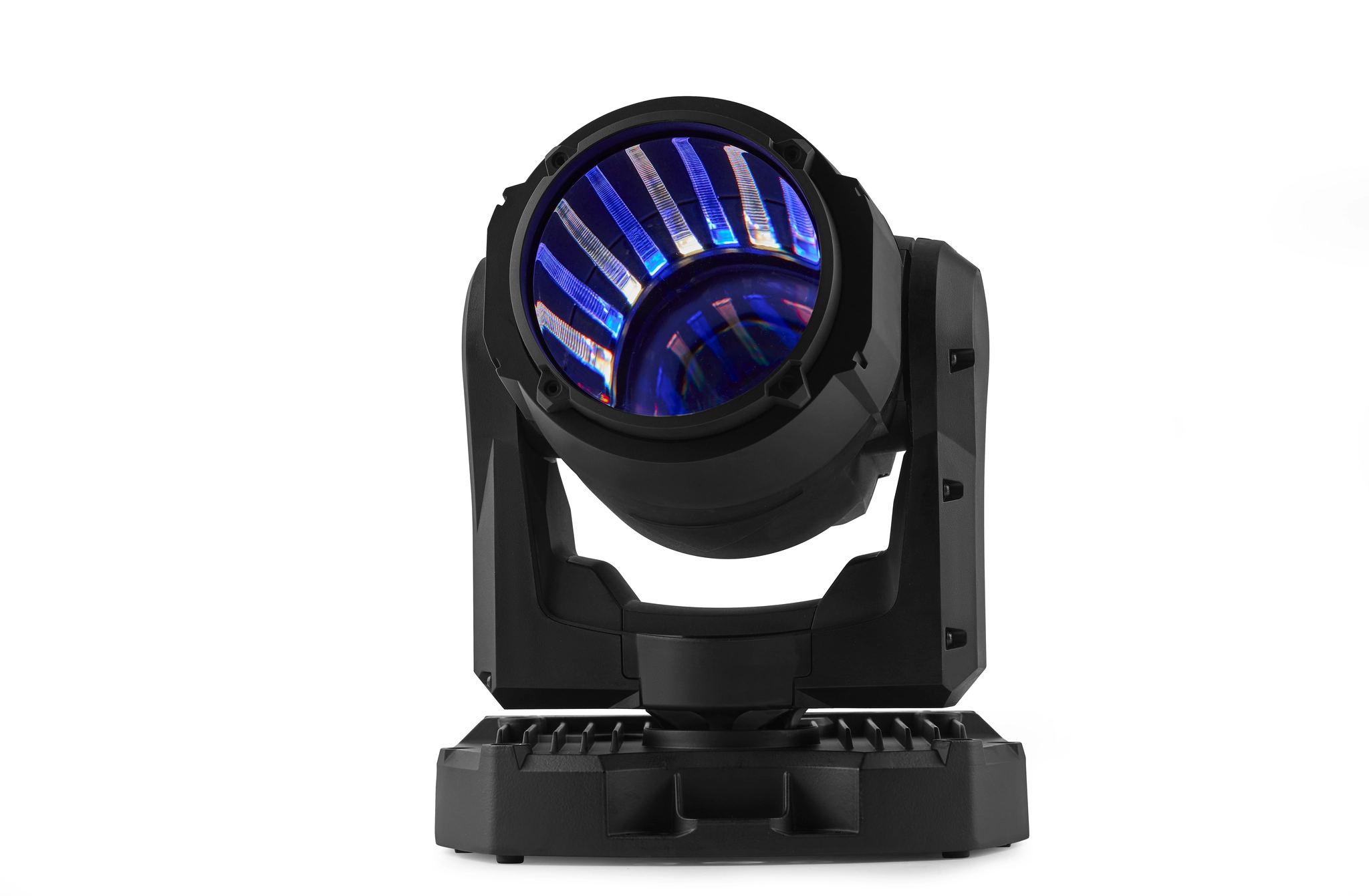

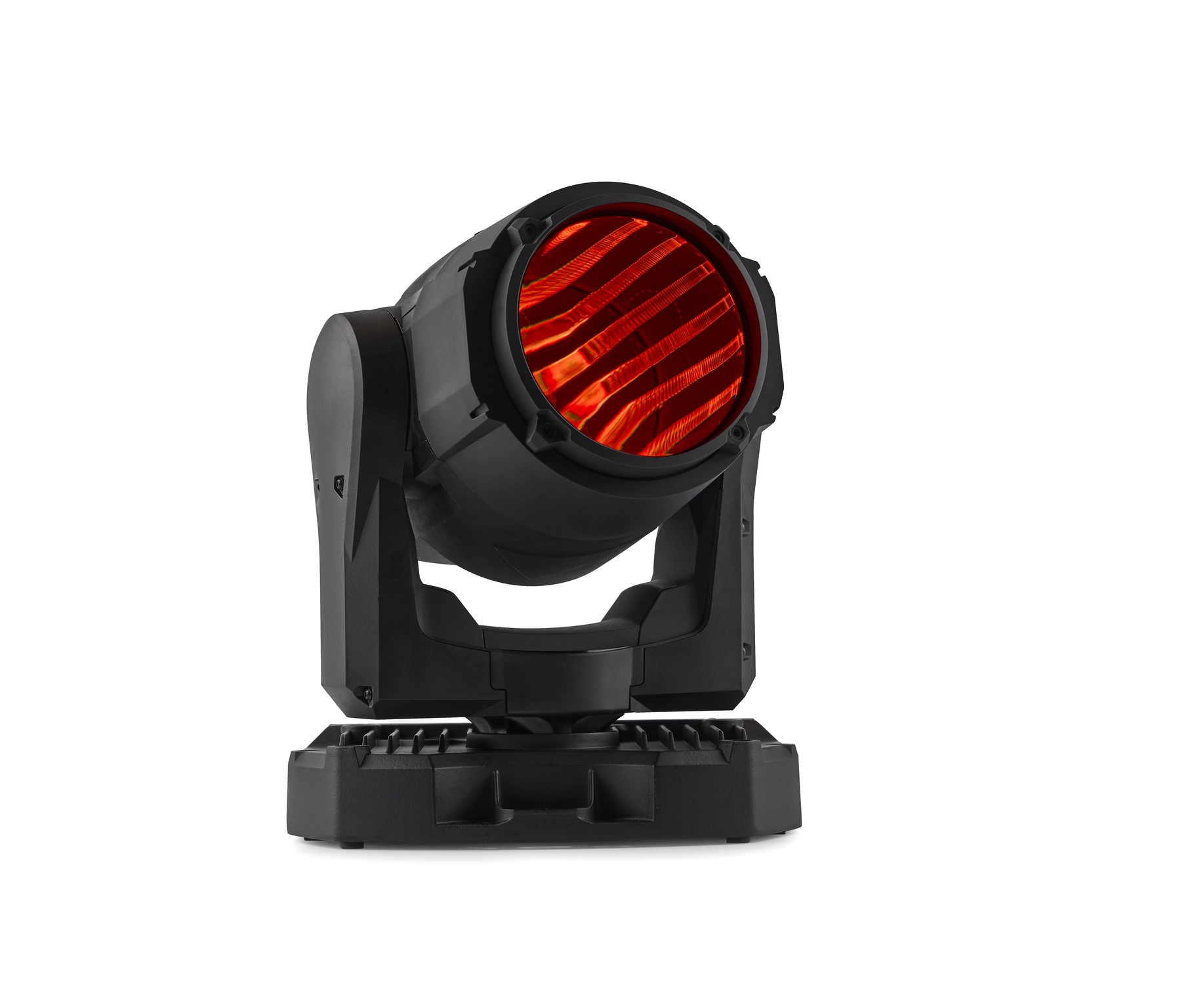

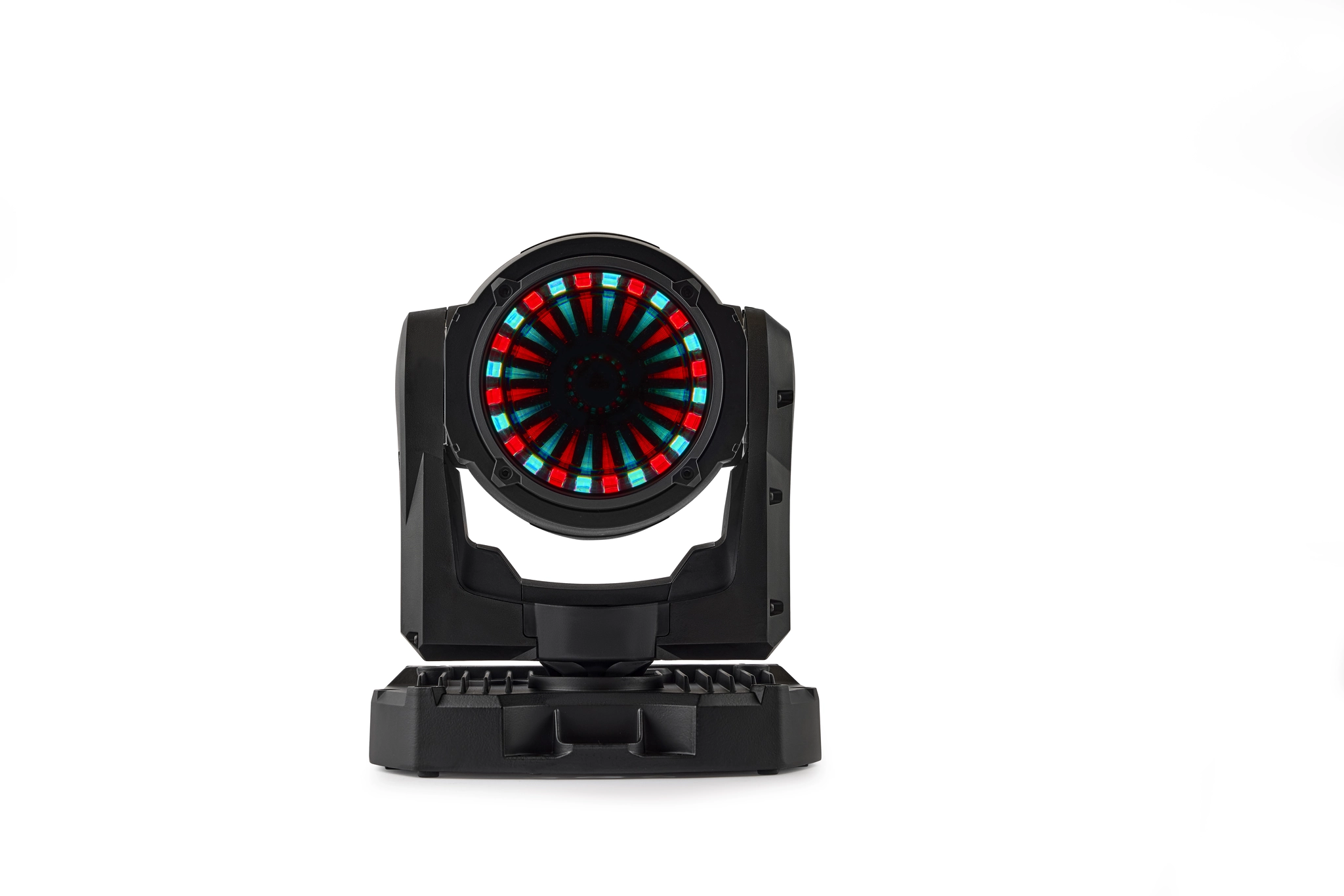

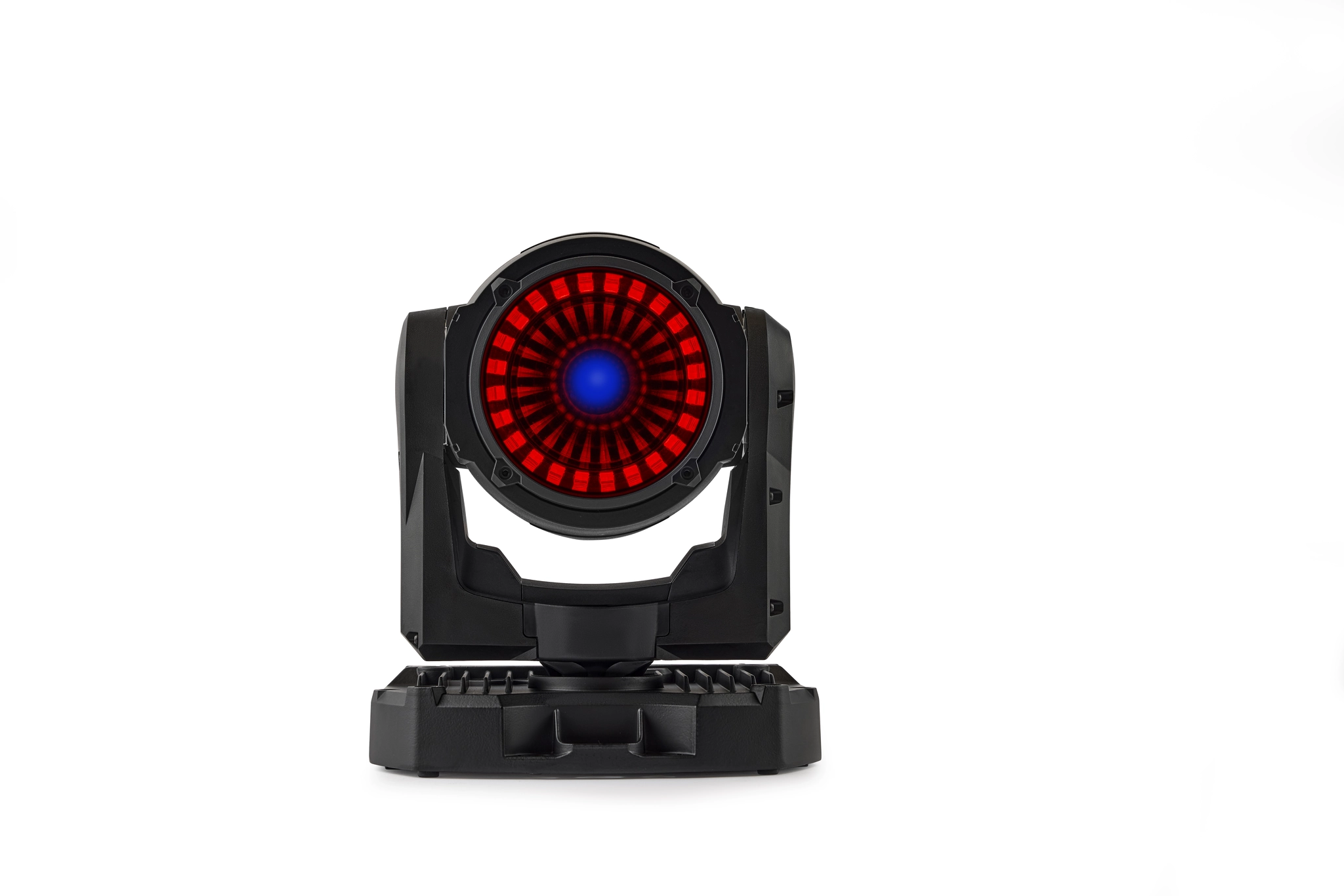

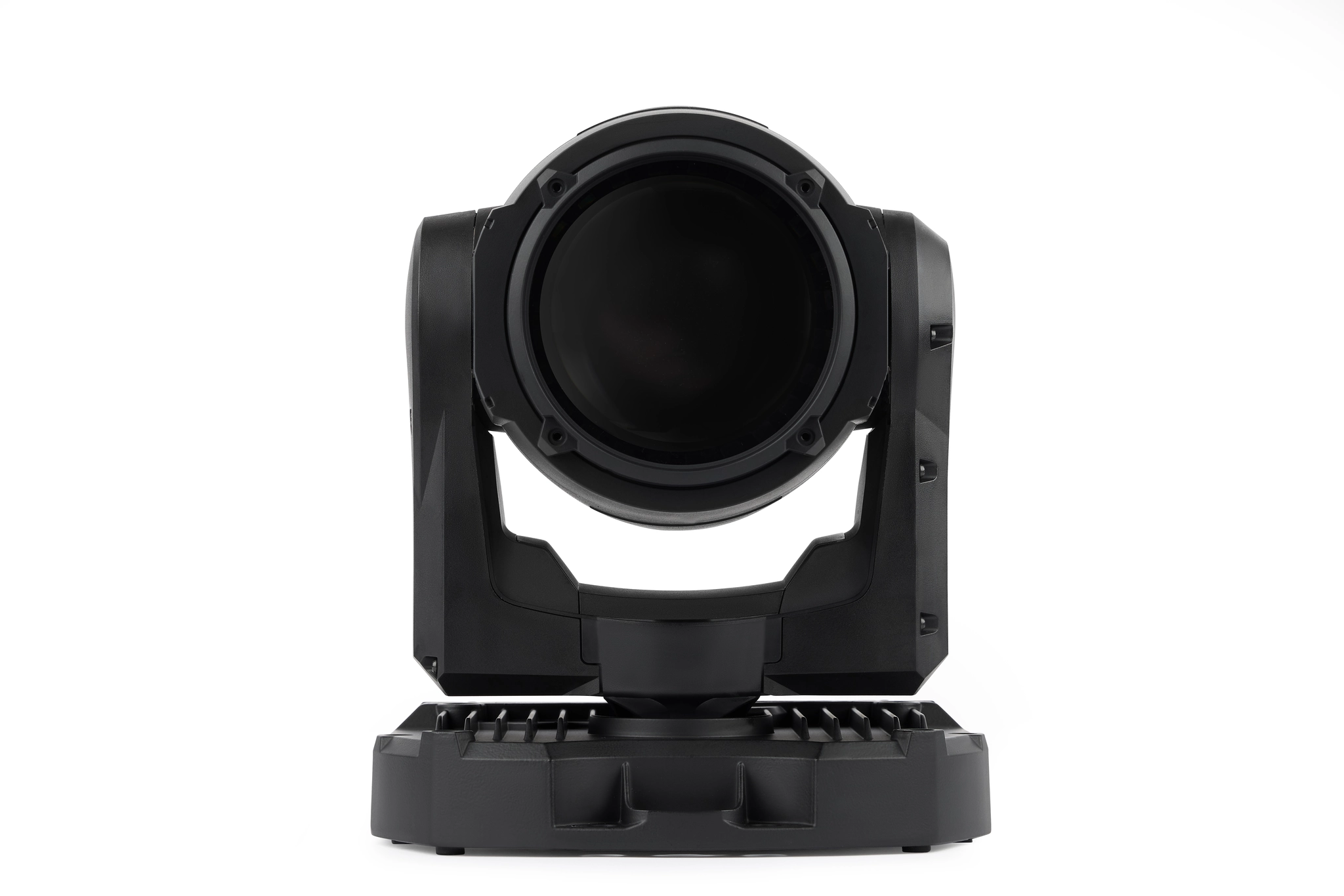

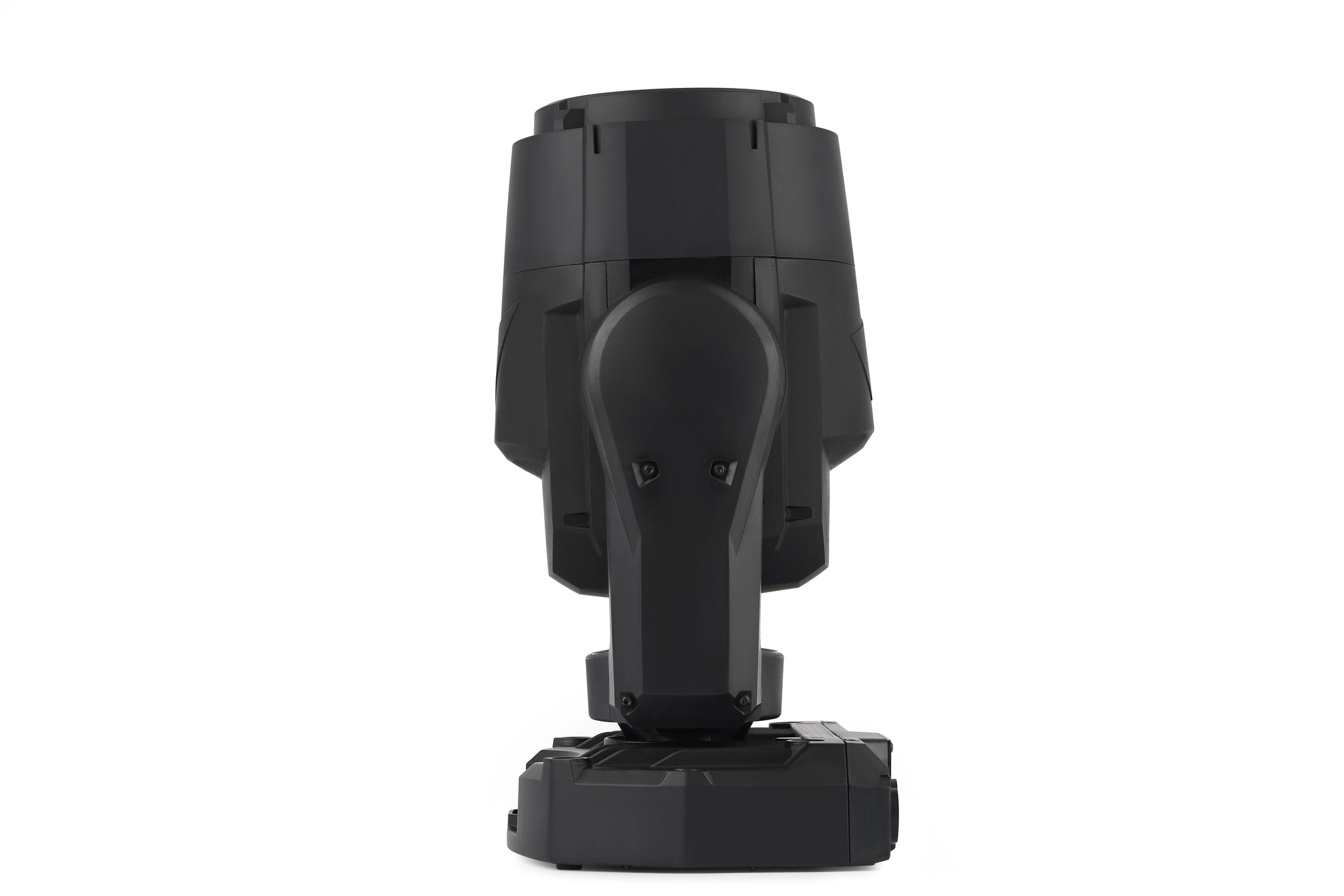

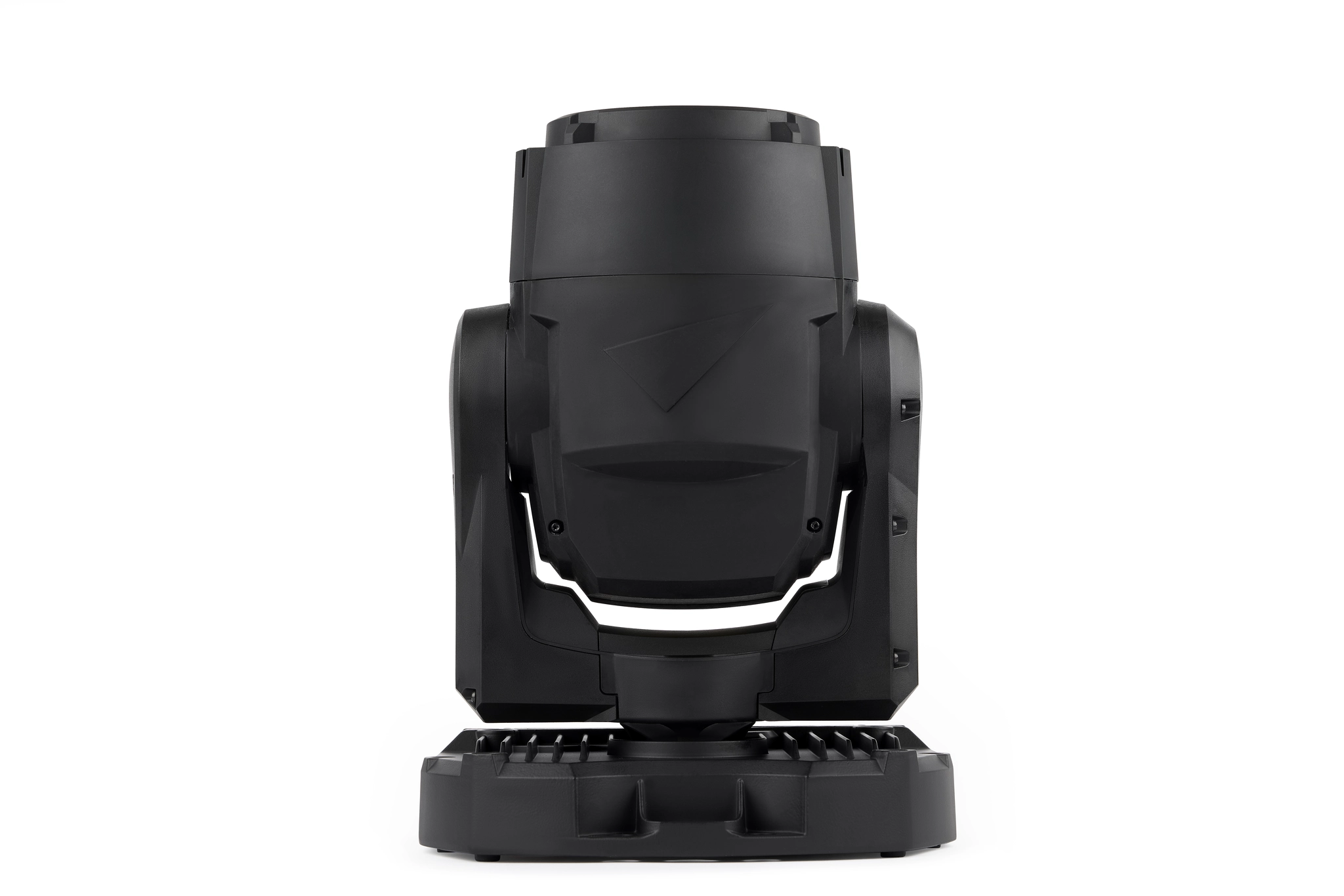

MAC One Beam Fixture
Width (across yoke): 226 mm (8.90 in.)
Width (base): 254 mm (10.00 in.)
Height (head forward): 303 mm (11.93 in.)
Height (maximum): 350 mm (13.78 in.)
Depth (head): 233 mm (9.17 in.)
Depth (base): 177 mm (6.97 in.)
Minimum center-to-center distance in side-by-side installation: 300 mm (11.81 in.)
Weight: 4.95 kg (10.91 lbs.)

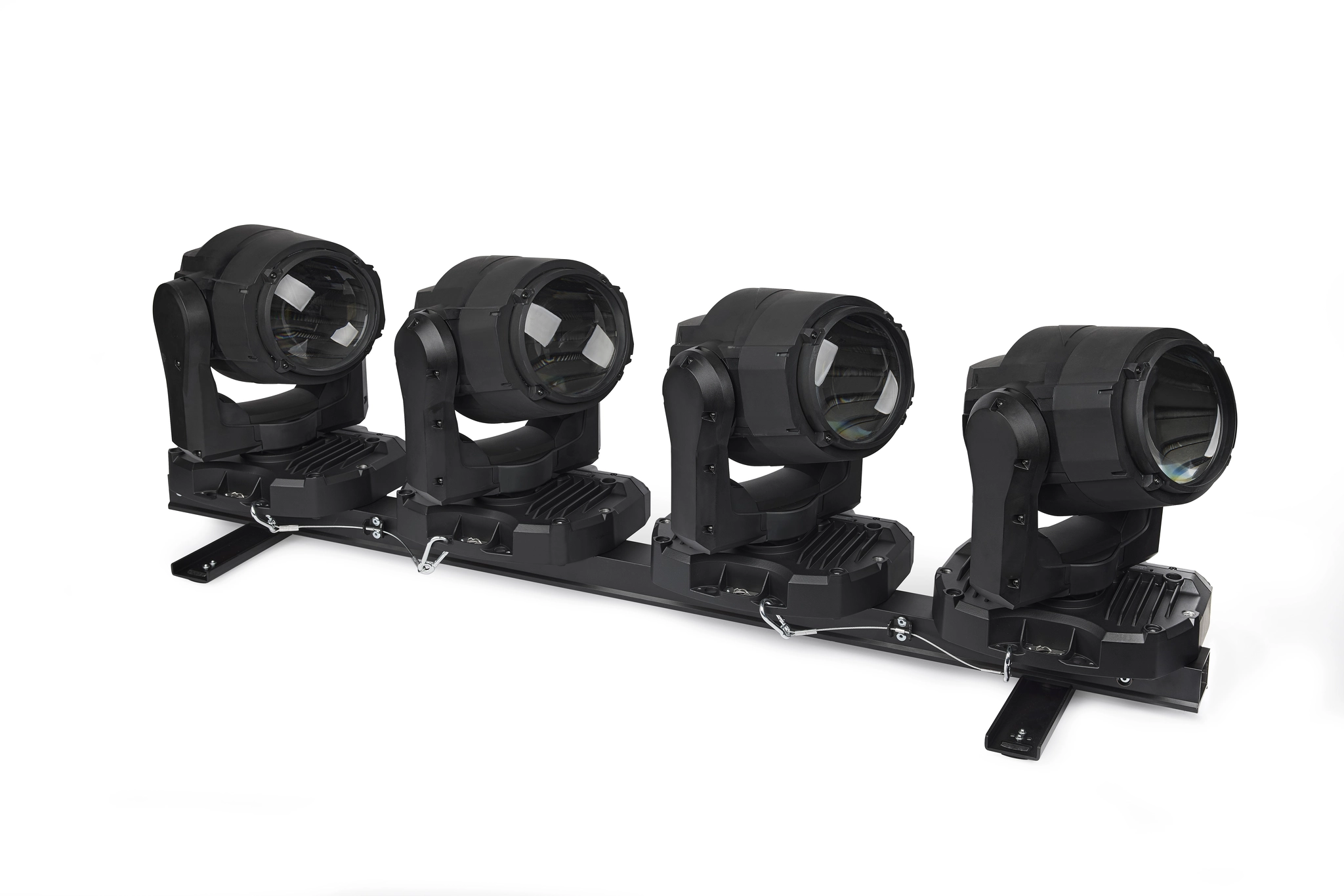

MAC One Family Fourbar
Length: 1168 mm (45.98 in.)
Length (installed end-to-end): 1200 mm (47.24 in.)
Width: 88 mm (3.46 in.)
Height (without feet): 42 mm (1.65 in.)
Height (with feet): 60 mm (2.36 in.)
Weight: 3.20 kg (7.05 lbs.)

MAC One Family VDO Grid Mount Ring
Width: 282 mm (11.10 in.)
Width (installed side-to-side): 300 mm (11.81 in.)
Height: 282 mm (11.10 in.)
Height (installed side-to-side): 300 mm (11.81 in.)
Depth: 80 mm (3.15 in.)
Weight: 0.75 kg (1.65 lbs.)

MAC One Family Dual VDO Header
Length: 568 mm (22.36 in.)
Length (installed end-to-end): 600 mm (23.62 in.)
Width: 85 mm (3.35 in.)
Height: 58 mm (2.28 in.)
Weight: 2.20 kg (4.85 lbs.)

MAC One Family Single VDO Adapter
Length: 50 mm (1.97 in.)
Width: 57 mm (2.24 in.)
Height: 58 mm (2.28 in.)
Weight: 0.20 kg (0.44 lbs.)

Dynamic Effects: Beam Dimmer/Shutter: 0 - 100% continuous dimming, regular and random strobe, instant open and blackout
Beam Dimming options: Choice of four dimming curves
Beam Color Mixing: CMY, independently variable 0 - 100%
Beam Virtual Color Temperature Control: Variable 2,000 – 12,850 K
Beam Virtual Tint Control: Variable green-magenta shift Δuv -0.05 – +0.05
Beam Virtual Color wheel: 16 color presets, 18 split color presets, 18 split color shakes & random color
Pan: Motorized 540°
Tilt: Motorized 240°
Beam P3 Mix: Videomapping of fixture with variable crossfade between DMX control and video control
Backlight Dimmer/Shutter: 0 – 100% continuous dimming, regular and random strobe, instant open and blackout
Backlight Dimming options: Choice of four dimming curves
Backlight Color Mixing: RGB, independently variable 0 - 100%
Backlight Color Temperature Control: Variable 2,000 – 12,850 K
Backlight Tint Control: Variable green-magenta shift Δuv -0.05 – +0.05
Backlight Virtual Color wheel: 48 color presets, continuous rotation & random color

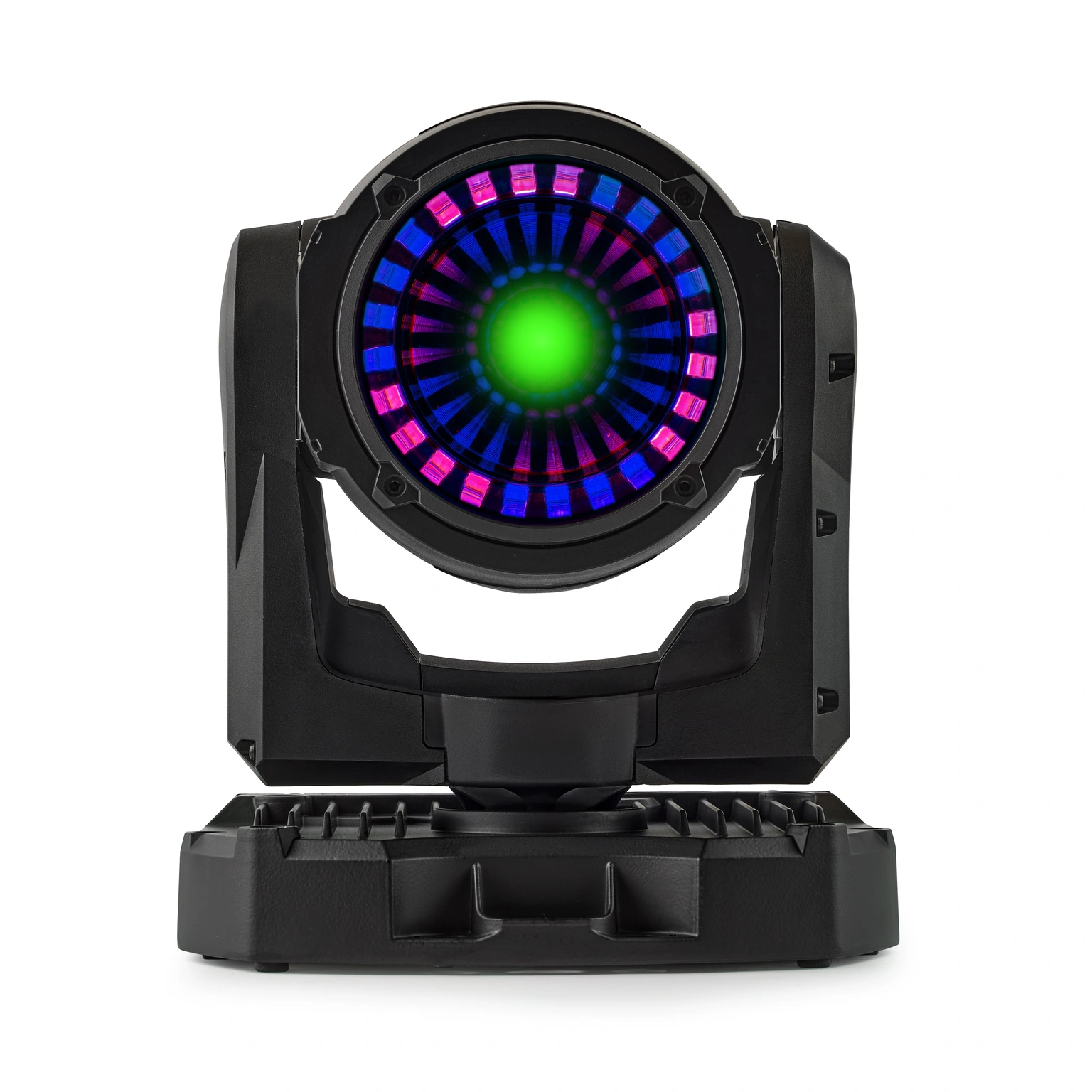

Backlight PixelMapping: Individual RGB control of each of the 24 Backlight pixels
Backlight P3 Mix: Videomapping of fixture with variable crossfade between DMX control and video control
Pre-programmed effects: Two ranges of FX on Beam, Backlight or Combination; independent or synchronized/combined
Dimming Zones control: Up to 8 dimming zones featuring remote programming, preview & easy-adjust
Light Engine Frequency control: Variable Light Engine PWM control

Control And Programming: Control Protocols: DMX, RDM, Art-Net, RDM over Art-Net, sACN and Martin P3
Protocol Detection: Automatic
DMX Modes: Compact, Basic & Ludicrous
DMX Channels: 19, 35 & 107
Multi-Universe Overflow: Yes, in all DMX Modes
16-bit Controllable Parameters: Beam & Backlight Dimming, Beam Color Mixing, Pan and Tilt
Setting and Addressing: Display Menu, RDM, RDM over Art-Net or Martin P3
Local User Interface: Backlit LCD Display with battery-powered operation
Fixture identification: User-settable ID number
DMX Compliance: USITT DMX512-A
RDM Compliance: ANSI/ESTA E1.20
Art-Net Compliance: Art-Net 1, 2, 3 and 4; including RDM over Art-Net
sACN Compliance: ANSI E1.31 - 2016
Martin P3 Compliance: P3 System Controller Software 5.1.0 or newer
DMX/RDM Transceiver: Galvanic-isolated RS-485
DMX/RDM Daisy-Chain Limit: 32 fixtures
Ethernet Transceiver: 10/100Mbit (with fail-safe bypass)
Ethernet Daisy-Chain Limit Recommendation: 50 fixtures
Firmware Update: via DMX using Martin Companion or via Ethernet using Martin Companion / P3 System Controller

Optics: Front Lens Diameter: 120 mm (4.72 in.)
Beam Angle (Half Peak): 0.40°
Field Angle (Tenth Peak): 0.80°
Beam Light Source: 1 x 20 W Laser Illuminated Light Engine
Backlight Light Source: 24 x 0.25 W RGB LED
Max. Total Beam Engine Power: 20 W
Max. Total Backlight LED Engine Power: 6 W
Minimum LED lifetime: > 50.000 hours (to > 70% luminous output)*
*Figure obtained under manufacturer's test conditions

Photometric Data: Peak Luminous Intensity Narrow: 7,000,000 cd
CCT: Variable 2,000 K – 12,850 K
CRI (Color Rendering Index): ≥ 72
CQS (Color Quality Scale): ≥ 61
TM-30 Rf (IES TM-30-15 Fidelity Index): ≥ 65
TM-30 Rg (IES TM-30-15 Gamut Index): ≥ 89
TLCI (Television Lighting Consistency Index): ≥ 37
Beam Light Engine Refresh Rate: 19,200 Hz with adjustment (+/- 2%) via DMX
Backlight LED Refresh Rate: 1,200 Hz
Binning: Tight color and flux binning
Calibration: Full Gamut Color Calibration of Backlight
Color Modes: Direct Color Mode, Extended Gamut Mode and Calibrated Color Mode
* All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient
* All Photometric Data measured at 7500 K white

Construction: Housing: High-impact flame-retardant thermoplastic
Color: Black
Protection rating: IP20

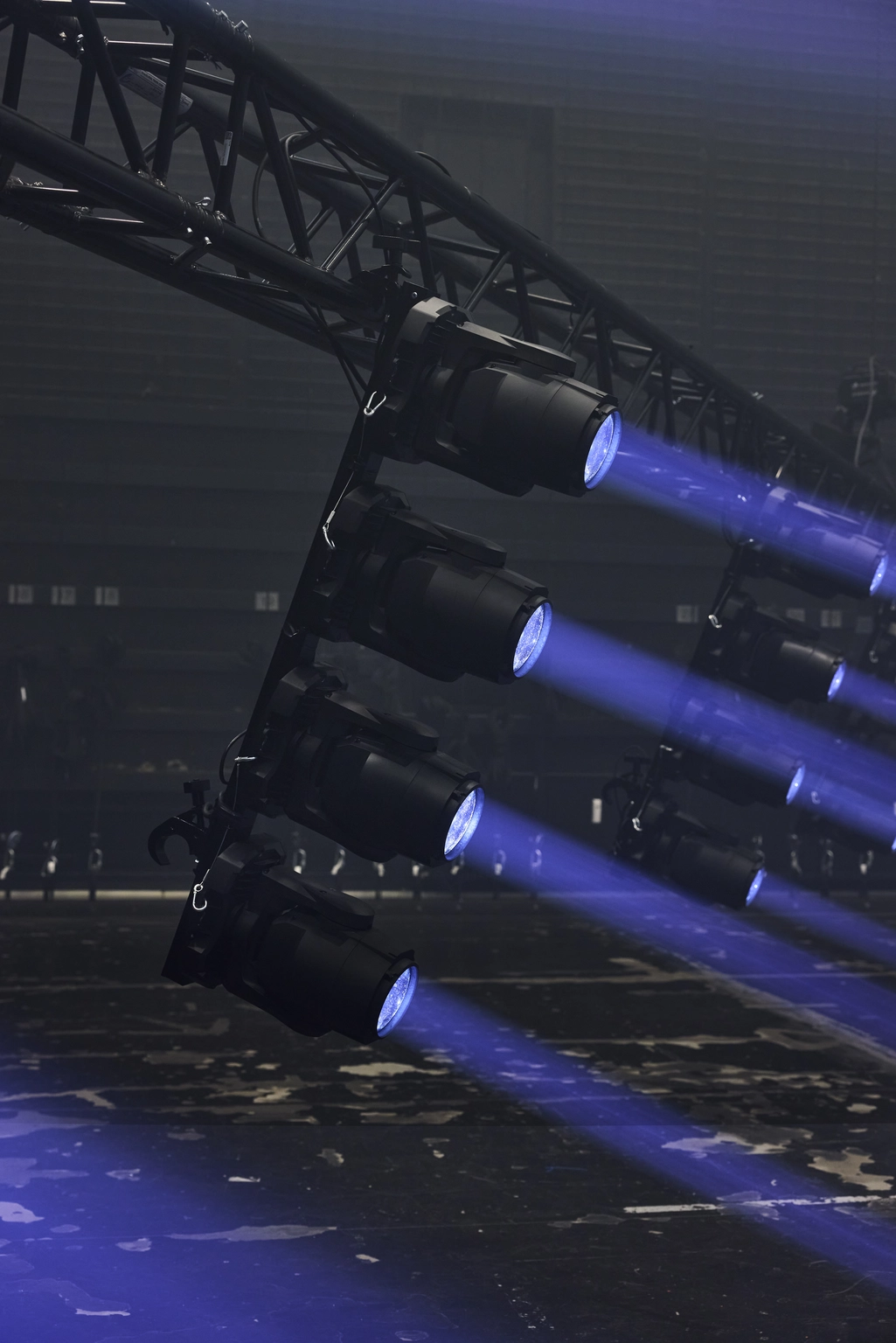

Installation: Mounting options: clamps on fixture, omega on fixture, fourbar or VDO grid mount ring

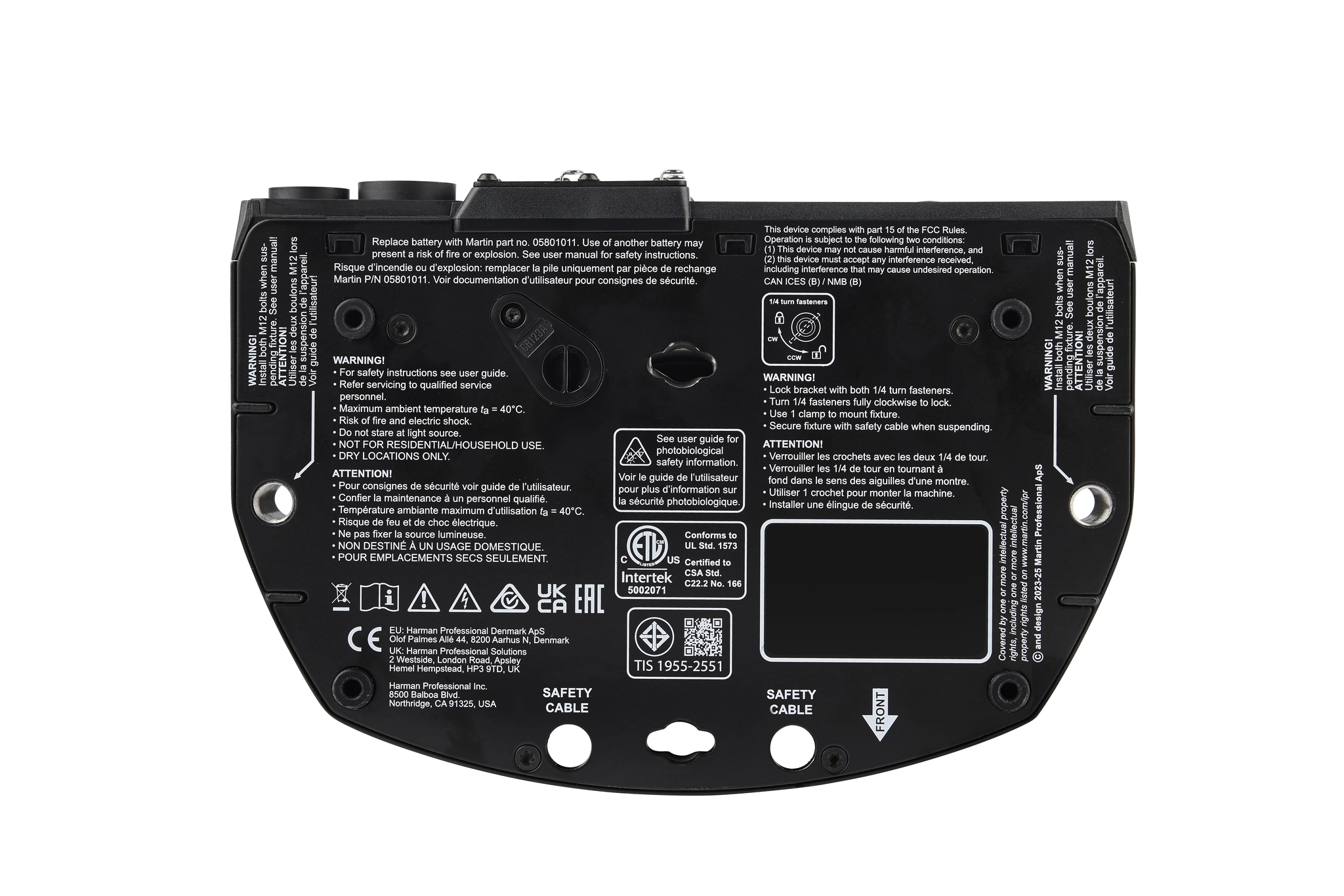

Mounting points on Fixture: 1 pair of 1/4-turn points for 106 mm (4.17 in.) center-to-center omega bracket and two M12 threaded holes
Mounting points on Fourbar: 1 fixed and 2 repositionable M12 threaded holes

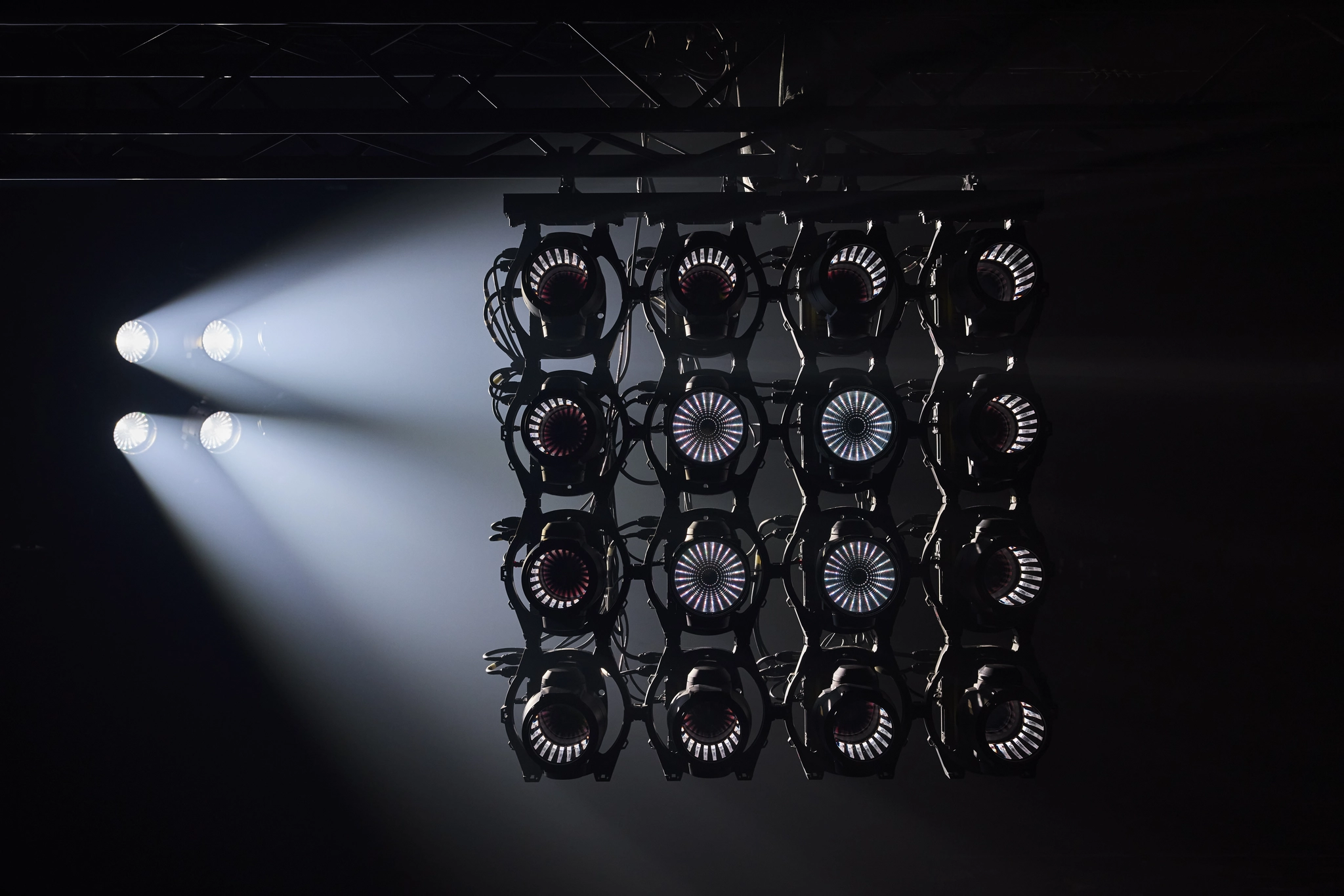

Mounting points on VDO Grid Mount Ring: 6 receivers for VDO Couplers (compatible with VDO Atomic Bold/Dot)
Mounting points on Dual VDO Header: 2 repositionable M12 threaded holes and 4 receivers for VDO Couplers (compatible with VDO Grid Mount Ring and VDO Atomic Bold/Dot)
Mounting points on Single VDO Adapter: 1 fixed M12 threaded hole, 4 fixed M6 threaded holes and 1 receiver for VDO Coupler (compatible with VDO Grid Mount Ring and VDO Atomic Bold/Dot)
Maximum vertical column height in VDO Grid Mount Rings: 12 fixtures
Location: Indoor or outdoor protected from elements
Orientation: Any
Minimum distance to combustible materials: 0.20 m (7.87 in.)
Minimum distance to illuminated surfaces: 1.75 m (68.90 in.)

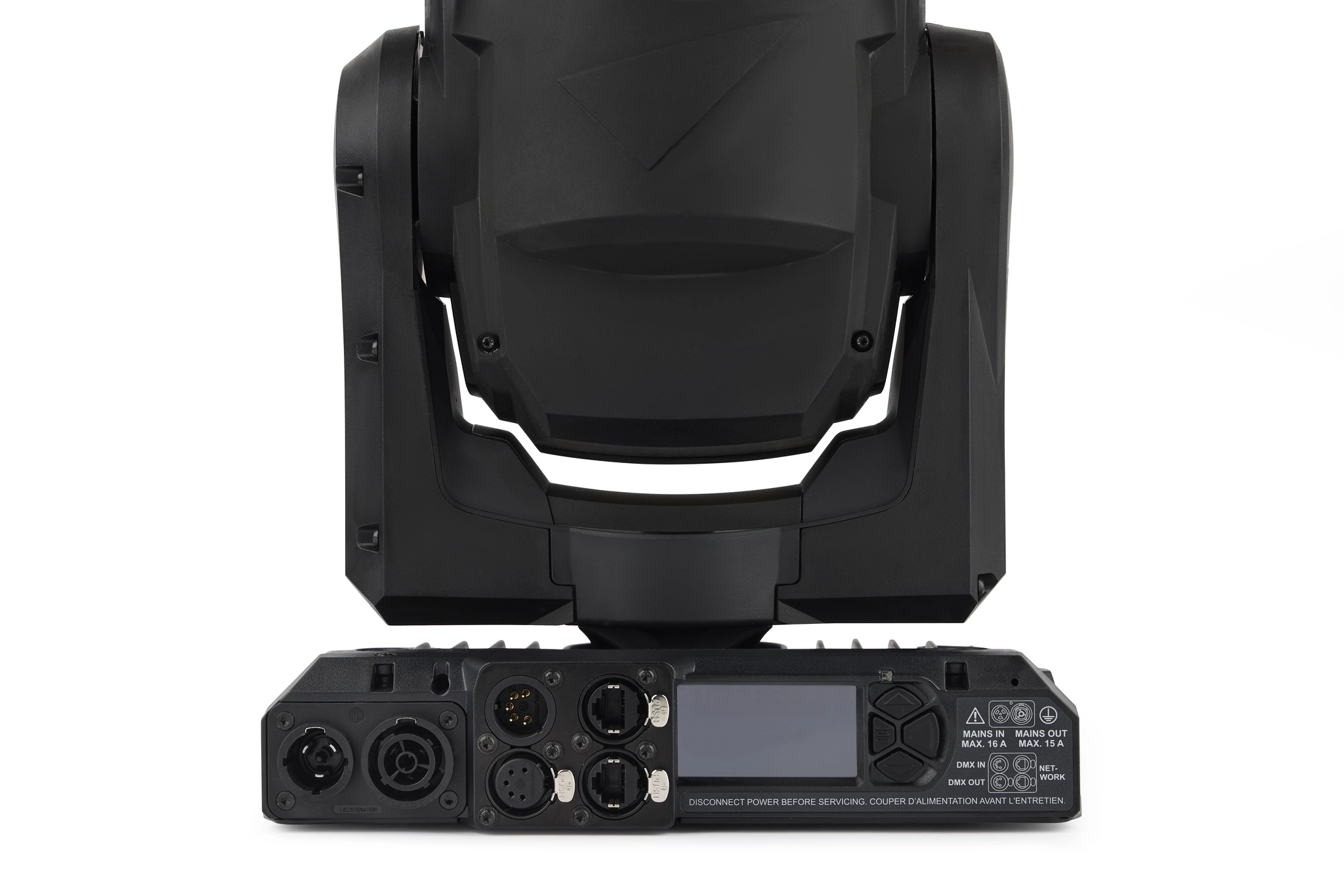

Connections: AC mains power in/thru: Neutrik powerCON TRUE1 TOP
DMX and RDM data in/thru: Neutrik 5-pin locking XLR
Ethernet (Art-Net, sACN and P3) in/thru, including fail-safe bypass: Neutrik etherCON

Electrical: AC power: 100-240 V AC nominal, 50/60 Hz
Power supply unit: Auto-ranging electronic switch mode
Typical half-cycle RMS inrush current at 230 V, 50 Hz: 3.2 A
Typical earth-leakage current: 0.50 mA
Power Factor: 0.85 @ 100V , 0.82 @ 120V , 0.59 @ 208V , 0.57 @ 230V , 0.55 @ 240V
Max current draw: 0.6 A @ 100V / 120V, 0.4 A @ 208V / 230V / 240V
Typical current draw: 0.5 A @ 100 V , 0.4 A @ 120 V , 0.3 A @ 208 V , 0.3 A @ 230 V , 0.3 A @ 240 V *
Power Consumption
Maximum: 55 W
Typical: 45 W *
Idle: 12 W *
Hibernation: 8 W *
* Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
Typical: full output white, no effects moving, regulated fan speed.
Idle: no output, no effects moving, regulated fan speed.
Hibernation: no output, motors de-energized, fans stopped, wake-up procedure to re-use fixture.

Thermal: Cooling: Forced air (temperature regulated, low noise, user-definable levels)
Maximum ambient temperature (Ta max.): 40° C (104° F)
Minimum ambient temperature (Ta min.): 5° C (41° F
)Maximum surface temperature, steady state, at 40° C ambient: 65° C (149° F)
Total heat dissipation (calculated, +/- 10%): 154 BTU/hr.

Acoustic Data: Sound Pressure Level (LpA) @ 1 m (default regulated fan mode, full output): 21.0 dB(A)
Sound Pressure Level (LpA) @ 1 m (constant fan mode ultra low): 21.5 dB(A)

Environmental: RoHS: Compliant
REACH: Compliant
WEEE: Compliant
Proposition 65: Compliant
FSC: Certified cardboard inner and outer packaging
Efficacy (max output): 216,583 cd/W
LWR*: 1,414,141 cd/kg (641,613 cd/lbs.)
LWR = Lumen-to-Weight Ratio


Approvals: Global CB Certification/IECEE: IEC 60598-2-17 (IEC 60598-1)
EU safety: EN 60598-2-17 (EN 60598-1), EN 60825-1, EN 62471, EN 62493
EU EMC: EN 55015; EN 55032; EN 55035; EN 61547; EN 61000-3-3
US safety: UL 1573 Pending
US EMC: FCC Part 15 Class B Pending
Canadian safety: CSA C22.2 No. 166 Pending
Canadian EMC: ICES-003 Class B, ICES-005 Class B Pending
Australia/NZ: RCM Pending
United Kingdom: UKCAThailand: TIS Pending

Included Items: Single omega bracket with 1/4 turn fasteners for rigging clamp attachment
Multi-Language Safety and Installation Manual

Related Items: MAC One in dual SiP: P/N MAR-90250205HU
MAC One in Cardboard: P/N MAR-90250200HU
MAC One white in Cardboard: P/N MAR-90250210HU
VDO Atomic Bold in cardboard: P/N MAR-90357703
VDO Atomic Dot CLD in cardboard: P/N 90357701
VDO Atomic Dot WRM in cardboard: P/N 90357702
Martin Companion Cable (for firmware update over DMX): P/N 91616091
Martin Companion Software (for firmware update over DMX/Ethernet): Free download from www.martin.com

Accessories:

Transport and Storage

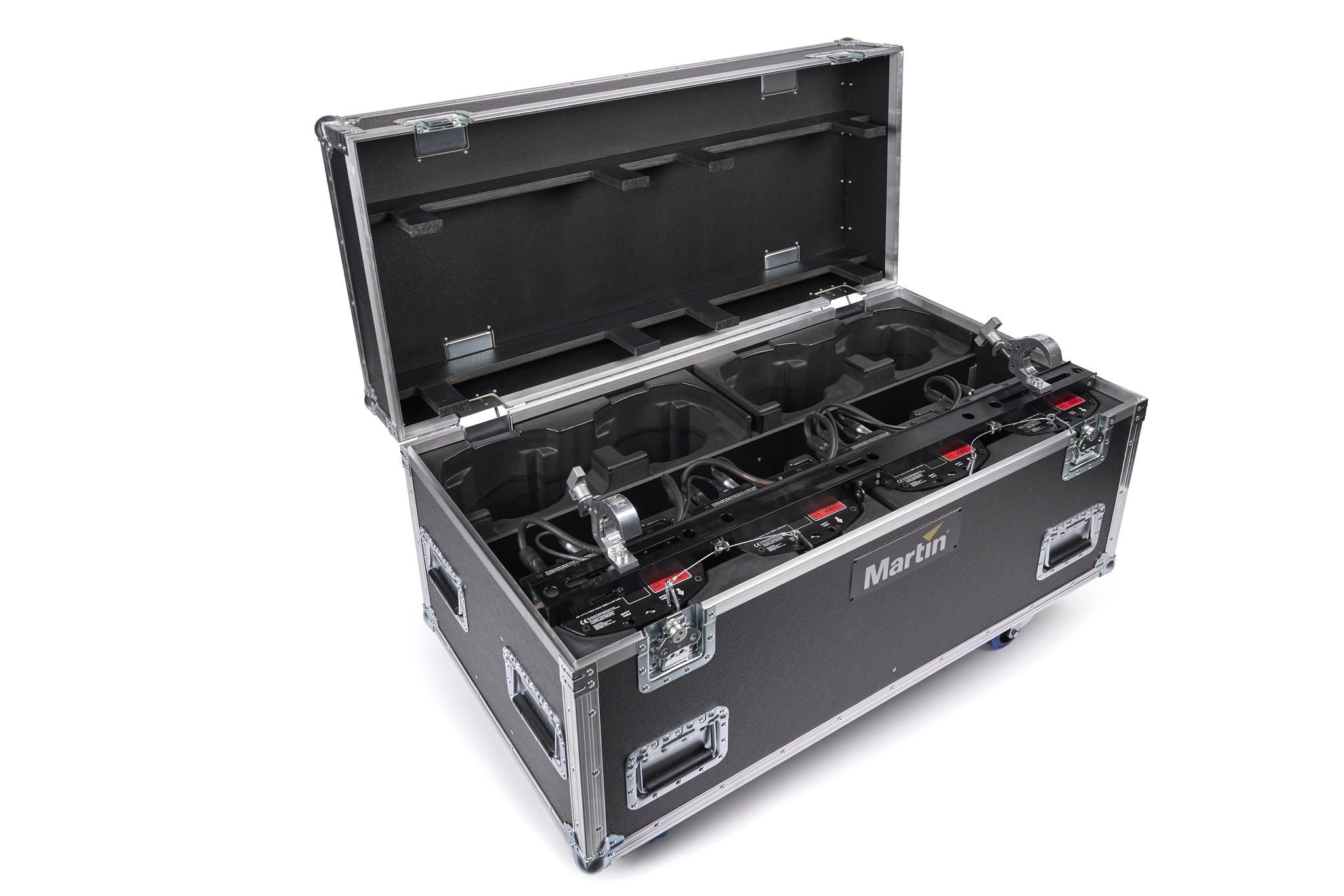

Flightcase for 8 x MAC One (fits MAC One Beam and MAC One): P/N MAR-91515058
Additional dual SiP Foam Flightcase Insert for MAC One Beam and MAC One: P/N MAR-91611865HU

Consumables
CR123A 3-volt lithium battery: P/N 05801011

Power Input Cables
Power Input Cable, H07RN-F, 2.5 mm2, bare ends to TRUE1 NAC3FX-W TOP (female), 1.5 m (4.9 ft.) P/N 91611797
Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1 NAC3FX-W TOP (female), 1.5 m (4.9 ft.) P/N 91610173

Power Linking Cables
Power relay cable, H07RN-F, 2.5 mm2, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91611796
Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91610172

Power Connectors
Cable Connector, Neutrik powerCON TRUE1 TOP Female: P/N 91611789HU
Cable Connector, Neutrik PowerCON TRUE1 TOP Male: P/N 91611788HU

PDE Adapter Cables (for use in matrix with VDO Atomic Bold/Dot)
BreakIn Cable Power-DMX-Ethernet to PDE: P/N MAR-91700000
BreakOut Cable PDE to Power-DMX-Ethernet: P/N MAR-91700001

Installation Hardware
MAC One Family Fourbar: P/N MAR-91616127HU
MAC One Family VDO Grid Mount Ring: P/N MAR-91616128HU
Set of 10 VDO Couplers: P/N MAR-91616129HU
Dual VDO Header: P/N MAR-91616130HU
Set of 10 Single VDO Adapters: P/N MAR-91616135
G-clamp (suspension with fixture hanging vertically downwards only): P/N 91602003
Quick Trigger Clamp (suspension with fixture hanging vertically downwards only): P/N 91602007
Half-coupler Clamp: P/N 91602005
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007

Ordering Information: MAC One Beam in dual SiP (in cardboard box with dual SiP foam flight case insert): P/N MAR-90250505HU (to be ordered in multiples of 2)
MAC One Beam in Cardboard (in cardboard box with cardboard inlay): P/N MAR-90250500HU
MAC One Beam white in Cardboard (in cardboard box with cardboard inlay): P/N MAR-90250510HU
