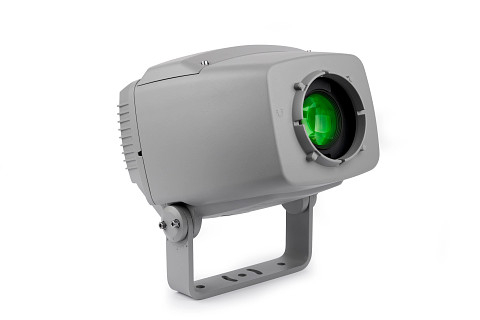

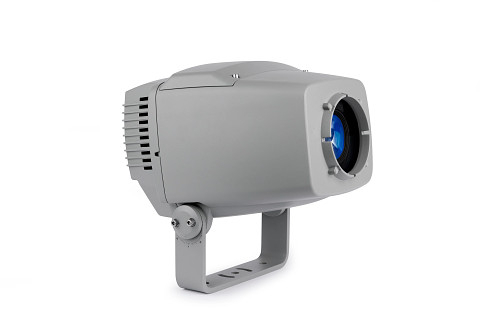

The Martin Exterior Projection Pro Compact is a next-generation outdoor image projector designed to inspire captivating creativity and versatility across a diverse range of architectural, façade, and landscape applications.

Featuring a modular design with 11 configurable options and up to four layers of effects, including precise façade framing, the fixture offers a broad spectrum of creative possibilities while minimizing complexity and cost. Its compact footprint and lightweight design facilitate pole mounting and seamless integration into various setups, delivering multiple application possibilities. The fixture’s sleek, professional appearance ensures it blends effortlessly into any environment.

The built-in zoom system enables precision adjustment of the projection angle from 15° to 45°, supported by an ultra-efficient optical system that consistently delivers 4,700 lumens across the entire zoom range. Engineered for maximum energy efficiency, the fixture includes a dedicated hibernation power mode, activated through the DMX control channel, significantly reducing power consumption when not in use.

Empowering users with control over multiple dynamic effects—including zoom, focus, colors, gobos, and animations—the Exterior Projection Pro Compact inspires the most creative applications. Using the optional framing module, the projected image can be framed to precisely match the façade. Smart controls feature a magnetic switch, DMX, RDM, and stand-alone programming via Martin Companion ensuring straightforward configuration and programming.

Engineered to meet stringent environmental standards, the fixture reduces its carbon footprint through its efficient optical system, FSC-certified packaging, and full repairability. Designed for permanent outdoor installations, it is fully outdoor-rated to withstand the harshest environmental conditions and is backed by Martin’s full, 5-year warranty.

With its modular design, compact form factor, and state-of-the-art features, the fixture is an incredibly advanced and cost-effective solution. Ideal for architectural lighting designers, architects, system integrators, and electrical contractors, it offers unmatched performance, versatility, and user-friendly operation.

Physical:

Length: 342 mm (13.5 inch.)
Width: 272 mm (10.7 inch.)
Height: 335 mm (13.2 inch.)
Weight: 12.5-13.9 kg (27.5–30.6 lbs)
Weight depends on actual configuration

Dynamic Effects:

Color wheel: 5 dichroic colors (red, green, blue, yellow, CTO) + open
Zoom: Motorized, 15° - 45° beam angle
Dimming: Electronic, 0-100% continuous dimming
Shutter: Strobe and pulse effects, instant open and blackout
Focus: Motorized, variable 3 m (9.8 ft.) to infinity

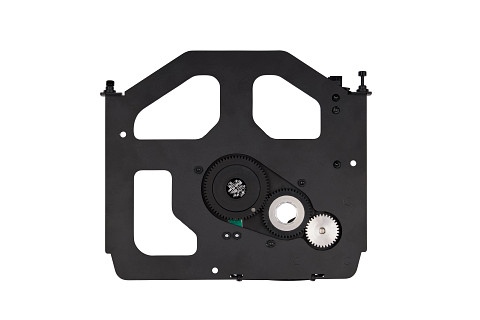

Accessory 1-gobo module: indexing, variable rotation
Accessory 4-gobo module: selection, indexing, variable rotation
Accessory animation module: Continuous rotation with variable speed and direction (always in aperture)

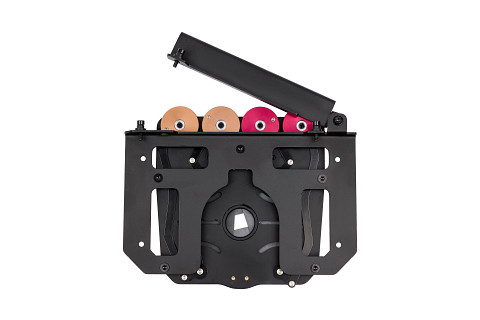

Accessory Framing module: 4 blades for manual adjustment of insert and angle (8 finger knobs with locking mechanism)

Control And Programming:

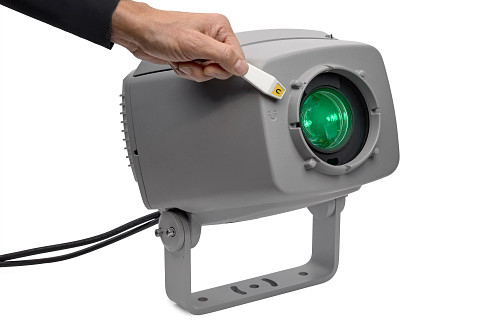

User interface: Magnetic sensor to call up fixture status and focus fixture
Stand-alone control: Up to 20 scenes with individual fade/ hold times
Control options: DMX, RDM, stand-alone
Configuration, addressing and status: Via RDM
8-bit control: Color and gobo selection
16-bit control: Gobo indexing and rotation, Animation, Focus, Zoom and Intensity
DMX channels: 13/14 (Basic / Extended)
DMX compliance: USITT DMX512-A
RDM compliance: ANSI/ESTA E1.20

Optics:

Light source: 130W White light LED engine
LED lifetime: minimum 30,000 hours (to >70% luminous output)*
Full Zoom Range: 15° - 45° (Field Angle)
*Figure obtained under manufacturer's test conditions

Photometric Data:

CRI (Color Rendering Index) : >70
Color Temperature: 7,500 K
Total output: 4,700 lumens
* All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient

Construction:

Housing: Cast aluminum
Finish: Hard anodized
Front glass: 5 mm (0.2 in.) anti-reflection coated tempered glass
Ingress protection: IP66
Impact resistance: IK08
Corrosion resistance: C5 (very high corrosivity / marine, ISO 12944)
Vibration resistance: 1.0g, Sinusoidal (IEC 60068-2-6)
0,7g RMS Random (IEC 60068-2-64), 3.0g (ANSI C136-31)
EPA (Effective Projected Area): 0.1 m2
Color options: Traffic Grey RAL 7042, Traffic White RAL 9016, Traffic Black RAL 9017

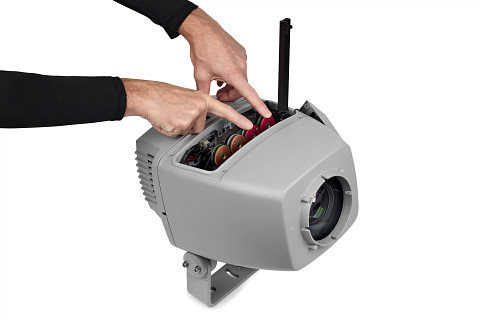

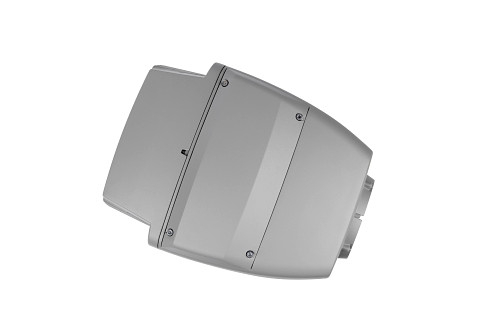

Service Lid for gobo change or insert of accessory effect modules

Gobos:

Suitable material: Borosilicate glass, coatings heatresistant to 450°C (842° F)
Gobo diameter: 19.0 mm +0/-0.3 mm (0.74 in. +0/-0.02 in.)
Maximum image diameter: 15 mm (0.59 in.)
Glass gobo thickness, minimum: 1.1 mm ±0.1 mm (0.045 ±0.004 in.)
Glass gobo thickness, maximum: 3.0 mm ±0.3 mm (0.12in. ± 0.012 in.)
Aluminum gobo thickness: 0.5 mm ± 0.02 mm (0.020 in. ± 001 in) HT paint

Installation:

Mounting: Adjustable yoke
Location: Adjustable yoke
Orientation: Any, except horizontal angles above 70°
Minimum distance to illuminated surfaces: 0.5 m (20 in.)

Electrical:

AC power: 100-240/277 V nominal, 50/60 Hz
Power supply: Auto-ranging electronic switch-mode
Surge protection: 4 KV
Power factor: 0.98 @ 110 V / 0.96 @ 230 V, 0.91 @ 277 V
Max current draw: 0.98 @ 110 V / 0.96 @ 230 V, 0.91 @ 277 V
Typical current draw: 1.48 A @110 V, 0.71 A @230 V, 0.63 A @ 277 V *

Thermal:

Cooling: Convection, internal forced air
Maximum surface temperature: 60° C (140° F)
Maximum ambient temperature (Ta max.): 45° C (113° F) *
Minimum ambient temperature (Ta min.): -30° C (-22° F)**
*Above this temperature, the fixture regulates output to protect from overheating.
**For instant wake-up with no warm-up mode, leave power applied constantly in ambient temperatures below 0° C (32° F)

Environmental:

RoHS: Compliant
REACH: Compliant
WEEE: Compliant
Proposition 65: Compliant
FSC: Certified cardboard outer packaging
Efficacy (max output): 29.3 lm/W
LWR*: 376 lm/kg (171 lm/lbs.)
*LWR = Lumen-to-Weight Ratio

Approvals:

Global CB Certification/IECEE: IEC 60598-2-5 (IEC 60598-1)
EU safety: EN 60598-2-5 (EN 60598-1), EN 62471, EN 62493
EU EMC: EN 55015, EN 55032(Class B),EN55035, EN 61000-3-2, EN 61000-3-3, EN 61547
US safety: ANSI/UL 1598
US EMC: CFR 47 Part 15 Class B
Canadian safety: CSA C22.2 No 250.13
Canadian EMC: CAN ICES (B)/ NMB(B)
Australia/NZ: RCM
BIS certification: (Pending)
