Physical:
- Weight: 41.0 kg (90.4 lbs.)
- Minimum center-to-center distance in side-by-side installation: 730 mm (28.8 in.)
- Length (head): 608 mm (24.0 in.)
- Length (base): 416 mm (16.4 in.)
- Width (base): 290 mm (11.4 in.)
- Width (across yoke): 431 mm (17.0 in.)
- Height (head straight up): 802 mm (31.6 in.)
- Height (maximum): 851 mm (33.5 in)
Dynamic Effects:
- Color mixing: CMY, independently variable 0-100%
- Color wheel: 6 color filters plus open
- Gobo animation: Animation wheel, indexing, continuous rotation with variable speed and direction
- Rotating gobo wheel: 6 gobos plus open, wheel rotation, gobo rotation, indexing and shake
- Static gobo wheel: 7 gobos plus open, wheel indexing, rotation and shake
- Iris: 0-100%
- Framing: Rotatable framing module, +/-60°, with 4 individually controllable full framing blades with variable angle and position.
- Prism: 2 rotating/indexing prisms (4-facet circular prism and 6-facet linear)
- Frost: Soft frost effect and heavy frost effect
- Color temperature control: Variable 6500 - 2700 K
- Electronic dimming: 0 - 100%, four dimming curve options
- Electronic shutter effect: Strobe effect, pulse effects, instant open and blackout
- Zoom: Motorized
- Pan: 540°, coarse & fine control and speed
- Tilt: 260°, coarse & fine control and speed
- Focus: Motorized
Control And Programming:
- Control options: DMX
- DMX channels: 4216-bit control: Dimming, CMY, CTO, Zoom, Focus, Pan and Tilt
- Setting and addressing: Control panel with backlit LCD display
- DMX compliance: USITT DMX512/1990
- RDM compliance: ANSI/ESTA E1.20
- Transceiver: Opto-isolated RS-485
Optics:
- Front lens diameter: 160 mm (6.3 in.)
- Zoom range: 7° - 56° (1:8)
- Light source: 800 W LED engine
- Minimum LED lifetime: 20000 hours (to >70% luminous output)*
- Binning: Tight color and flux binning
*Manufacturer´s figure obtained under manufacturer´s test conditions
Photometric Data:
Light engine luminous output: 70,000 lumensLED refresh rate : 3600 Hz
Standard
- Fixture luminous output: 35,000 lumens
- CRI (Color Rendering Index): >70
- CQS (Color Quality Scale): >67
- TM-30 Rf (IES TM-30-15 Fidelity Index): >65
- TM-30 Rg (IES TM-30-15 Gamut Index): >93
- TLCI (Television Lighting Consistency Index): >44
- CCT: 6900 K (+/- 250 K)
- Peak Luminous Intensity: 1,870,000 cd
With Optional CRI Boost Filter
- Fixture luminous output: 25,000 lumens
- CRI (Color Rendering Index): >79
- CQS (Color Quality Scale): >76
- TM-30 Rf (IES TM-30-15 Fidelity Index): >77
- TM-30 Rg (IES TM-30-15 Gamut Index): >98
- TLCI (Television Lighting Consistency Index): >57
- CCT: 6500 K (+/- 250 K)
- Peak Luminous Intensity: 1,276,000 cd
* All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.
Construction:
Housing: High-impact flame-retardant thermoplastic
Color: Black
Protection rating: IP 20
Gobos:
- Maximum image diameter: 25 mm (0.98 in.)
- Gobo material: Borofloat 33
- External diameter: 30.0 mm +0 / -0.2 mm (1.181 in. +0 / -0.008 in.)
- Maximum gobo thickness: 1.1 mm (0.04 in.)
- Coating: Heavy matted aluminum
Connections:
- DMX and RDM data in/out: 5-pin locking XLR
- AC mains power input.: Neutrik TRUE1 socket, accepts TRUE1
- NAC3FX-W (TOP) connector
- AC mains power throughput : Neutrik TRUE1 socket, accepts TRUE1
- NAC3MX-W (TOP) connector
Installation:
- Mounting points: 2 pairs of 1/4-turn points for 106 mm (4.17 in.) center-to-center omega brackets
- Location: Dry location only, must be fastened to surface or structure
- Orientation: Any
- Minimum distance to combustible materials: 0.2 m (8 in.)
- Minimum distance to illuminated surfaces: 2.0 m (6.6 ft.)
Electrical:
- AC power: 100-240 VAC (nominal), 50/60 Hz
- Power supply unit: Auto-ranging electronic switch mode
- Half-cycle RMS inrush current at 230 V, 50 Hz: 10.3 A
- Typical power consumption, all effects static, zero light output: 64 W
- Maximum total power consumption: 1397 W
- Recommended MCB (Miniature Circuit Breaker) per IEC 60898/UL489/CSA C22.2 No. 5: Type D
Typical Power And Current:
- 120 V, 60 Hz: 10.8A, 1270W, PF 0.99
- 230 V, 50 Hz: 5.5A, 1240W, PF 0.97
Figures are typical, not maximum. Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%. PF = power factor
Thermal:
- Cooling: Forced air (temperature regulated, low noise)
- Maximum ambient temperature (Ta max.): 40° C
- Minimum ambient temperature (Ta min.): 0° C
- Maximum surface temperature, steady state, at 40° C ambient: 75° C (167° F)
- Total heat dissipation (calculated, +/- 10%): 4340 BTU/hr.
Acoustic Data:
- Sound Pressure Level (LpA) @ 1 m (default regulated fan mode, full output): 41.4 dB(A)
- Sound Pressure Level (LpA) @ 1 m (constant fan mode ultra low): 37.7 dB(A)
Environmental:
- RoHS: Compliant
- REACH: Compliant
- WEEE: Compliant
- Proposition 65: Compliant
- Efficacy (max output): 30.2 lm/W
- LWR*: 853 lm/W (387 lm/lb)
LWR = Lumen-to-Weight Ratio
Approvals:
- Global CB Certification/IECEE: IEC 60598-2-17 (IEC 60598-1)
- EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493EU EMC: EN 55015; EN 55032; EN 55035; EN 61000-3-2,-3;
- EN 61547
- US safety: UL 1573
- US EMC: FCC Part 15 Class B
- Canadian safety: CSA C22.2 No. 166
- Canadian EMC: ICES-003 Class B, ICES-005 Class B
- Australia/NZ: RCM
Accessories:
Conversion kits
- Framing Module (converts ERA 800 Profile to Performance): P/N 5125961-00
- Gobo Wheel 3 Effects Module (converts ERA 800 Performance to Profile): P/N 5131799-00
Optical accessories
CRI Boost Filter (CRI >79, installs on gobo wheel): MAR-91614059
Power input cables
- Power Input Cable, H07RN-F, 2.5 mm2, 14 AWG, bare ends to TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.) : P/N 91611797
- Power Input Cable, H07RN-F, 2.5 mm2, 14 AWG, bare ends to TRUE1 NAC3FX-W (female), 5 m (16.4 ft.): P/N 91611786
- Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.): P/N 91610173
- Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1 NAC3FX-W (female), 5 m (16.4 ft.): P/N 91610174
Power relay cables, 16 A
- Power Relay Cable, H07RN-F, 2.5 mm2, TRUE1 to TRUE1, 0.45 m (1.5 ft.): P/N 91611784
- Power Relay Cable, H07RN-F, 2.5 mm2, TRUE1 to TRUE1, 1.2 m (3.9 ft.): P/N 91611785
- Power Relay Cable, H07RN-F, 2.5 mm2, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91611796
- Power Relay Cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 0.45 m (1.5 ft.): P/N 91610170
- Power Relay Cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 1.2 m (3.9 ft.): P/N 91610171
- Power Relay Cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91610172
Power connectors
- Cable Connector, Neutrik powerCON TRUE1 NAC3FX-W TOP (female): P/N 91611789HU
- Cable Connector, Neutrik powerCON TRUE1 NAC3MX-W TOP (male): P/N 91611788HU
Installation hardware
- G-clamp (suspension with fixture hanging vertically downwards only): P/N 91602003
- Half-coupler Clamp: P/N 91602005
- Quick Trigger Clamp (suspension with fixture hanging vertically downwards only): P/N 91602007
- Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
- Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007
- T-shape omega bracket with 1/4 turn, PN 91602008
Ordering Information:

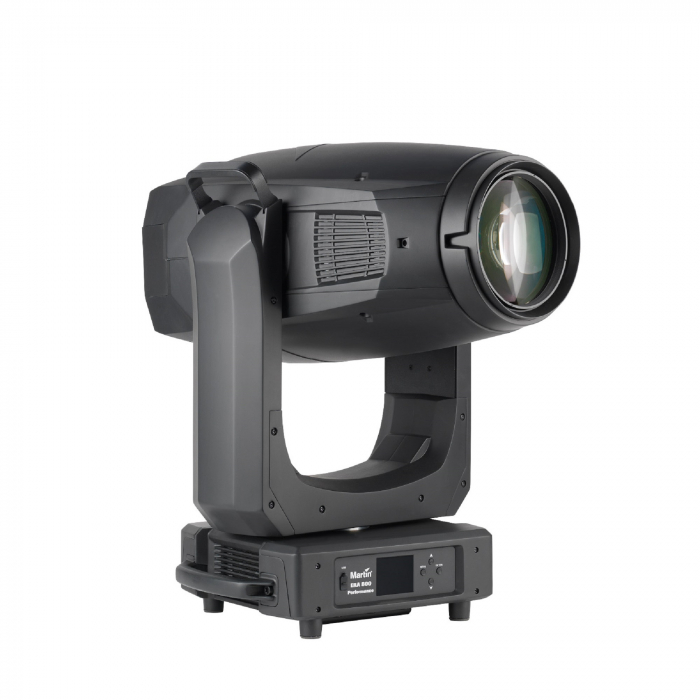

- Martin ERA 800 Performance in cardboard box: P/N 9025122052
- Martin ERA 800 Performance – White in cardboard box: P/N 9025122053
- Flightcase, two unit, for 2 x ERA 800 Performance / Profile : P/N 91512255
