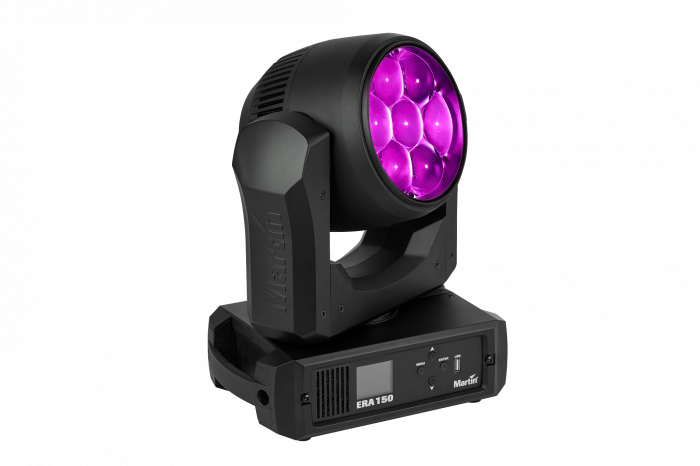

ERA 150 WASH - Proiector cu cap rotativ Led Wash - Martin

Physical:

• Length: 276 mm (10.9 in.)
• Width: 176 mm (7.0 in.)
• Height: 356 mm (14.1 in.)
• Weight: 7.3 kg (16.1 lbs.)

Dynamic Effects:

• Color mixing: RGBW
• Color presets: 48 color presets, virtual color wheel effects
• Color temperature control: Variable 1,800 - 12,850 K
• Electronic dimming: 0 - 100%, four dimming curve options
• Strobe and pulse effects: Variable speed and action, random strobe
• Electronic shutter effect: Instant open and blackout
• Zoom: Motorized, 4.2 - 58°
• Pan: 540°
• Tilt: 260°

Control And Programming:

• Control options: DMX, RDM
• DMX channels: 18
• 16-bit fine control: Dimming, RGB, zoom, pan and tilt
• LED color management modes: Raw, extended and calibrated
• DMX address setting: Control panel with LCD display
• DMX compliance: USITT DMX512-A
• RDM compliance: ANSI/ESTA E1.20
• Fixture software update: USB memory device or over DMX link

Optics:

• Light source: 7 x 40 W RGBW Osram LEDs
• Minimum LED lifetime: 50,000 hours (to >70% luminous output)*
• Beam angle (half-peak): 4.2° - 38.7°
• Field angle (one-tenth peak): 5.1° - 58.6°
• Cutoff angle (3%): 5.7° - 69.6°
• Binning: Tight color and flux binning
• Calibration: Full Gamut Color Calibration

Photometric Data:

• Wide beam: 3700 lumens
• Narrow beam: 1774 lumens
• Fixture Center Intensity Narrow Beam: 397783 cd
• Fixture Center Intensity Wide beam: 10042 cd
• CRI (Color Rendering Index) : >70
• CQS (Color Quality Scale): 83
• TM-30 Rf (IES TM-30-15 Fidelity Index): 77
• TM-30 Rg (IES TM-30-15 Gamut Index): 117
• TLCI (Television Lighting Consistency Index): 56CCT: 6500 Kelvin
• LED refresh rate - Standard Mode: 3600 Hz
• LED refresh rate - Theatre Mode: 19200 Hz

Construction:

• Housing: High-impact flame-retardant thermoplastic
• Color: Black
• Protection rating: IP 20

Installation:

• Mounting points: 2 x quarter‐turn fastener receptacles, 106.5 mm
• Location: Indoor use only, must be fastened to surface or structure
• Orientation: Any
• Minimum distance to combustible materials: 0.5 m (1.7 ft.)
• Minimum distance to illuminated surfaces: 1 m (3.3 ft.)
• Minimum clearance around fan and air vents: 0.5 m (1.7 ft.)

Connections:

• AC power input/output: Neutrik PowerCON TRUE1 TOP
• DMX and RDM data in/out: Neutrik 5-pin locking XLR

Electrical:

• AC power: 100-240 VAC (nominal), 50/60 Hz
• Typical power consumption: 315 W
• Typical half-cycle RMS inrush current at 240 VAC: 8.7 A
• Power supply unit: Auto-ranging electronic switch mode

Maximum Power And Current:

• 100-120 V, 60 Hz : 3.8 A, 340 W, Power factor 0.993
• 220-240 V, 50 Hz: 1.5 A, 340 W, Power factor 0.966

Thermal:

• Cooling: Forced air (temperature regulated, low noise)
• Maximum ambient temperature (Ta max.): 40° C (104° F)
• Minimum ambient temperature (Ta min.): -10° C (14° F)
• Total heat dissipation (calculated): 1195 BTU/hr.

Acoustic Data:

• Sound Pressure Level (LpA) @ 1 m (default regulated fan mode, full output): 37.0 dB(A)
• Sound Pressure Level (LpA) @ 1 m (constant fan mode ultra low): 34.3 dB(A)

Environmental:

• RoHS: Compliant
• REACH: Compliant
• WEEE: Compliant
• Proposition 65: Compliant
• Efficacy (max output): 15.5 lm/W
• LWR*: 507 lm/kg (230 lm/lb)

LWR = Lumen-to-Weight Ratio


Approvals:

•
• Global CB Certification/IECEE: IEC 60598-2-17 (IEC 60598-1)
• EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493
• EU EMC: EN 55015; EN 55032; EN 55035; EN 61000-3-2, EN 61000-3-3,
• EN 61547
• US safety: UL 1573
• US EMC: FCC Part 15 Class B
• Canadian safety: CSA C22.2 No. 166
• Canadian EMC: ICES-003 Class B, ICES-005 Class B
• Australia/NZ: RCM
• United Kingdom: UKCA

Related Items:

• Martin Companion Cable (for firmware update over DMX): P/N 91616091
• Martin Companion Software (for firmware update over DMX): Free download from www.martin.com

Accessories:

Power Input Cables

• Power Input Cable, H07RN-F, 2.5 mm2, bare ends to TRUE1 NAC3FX-W TOP (female), 1.5 m (4.9 ft.) P/N 91611797
• Power Input Cable, H07RN-F, 2.5 mm2, bare ends to TRUE1 NAC3FX-W TOP (female), 5 m (16.4 ft.) P/N 91611786
• Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1 NAC3FX-W TOP (female), 1.5 m (4.9 ft.) P/N 91610173
• Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1 NAC3FX-W TOP (female), 5 m (16.4 ft.) P/N 91610174

Power Linking Cables

• Power relay cable, H07RN-F, 2.5 mm², TRUE1 to TRUE1, 0.45 m (1.5 ft.): P/N 91611784
• Power relay cable, H07RN-F, 2.5 mm2, TRUE1 to TRUE1, 1.2 m (3.9 ft.): P/N 91611785
• Power relay cable, H07RN-F, 2.5 mm2, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91611796
• Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 0.45 m (1.5 ft.): P/N 91610170
• Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 1.2 m (3.9 ft.): P/N 91610171
• Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91610172

Power Connectors

• Power Connector, Cable Mount, Neutrik TRUE1 NAC3FX-W (female): P/N 91611789HU
• Power Connector, Cable Mount, Neutrik TRUE1 NAC3MX-W (male): P/N 91611788HU

Installation Hardware

• G-clamp (suspension with fixture hanging vertically downwards only): P/N 91602003
• Quick Trigger Clamp (suspension with fixture hanging vertically downwards only): P/N 91602007
• Half-coupler Clamp: P/N 91602005
• Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
• Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007

Ordering Information:

• ERA 150 Wash in cardboard box: P/N MAR-90290000
• ERA 150 Wash - White in cardboard box: P/N MAR-90290005
